Contemporary urban architecture Mixed-use mid-rise
Architecture / Mixed-use mid-rise Build Guide ·

Contemporary urban architecture Mixed-use mid-rise

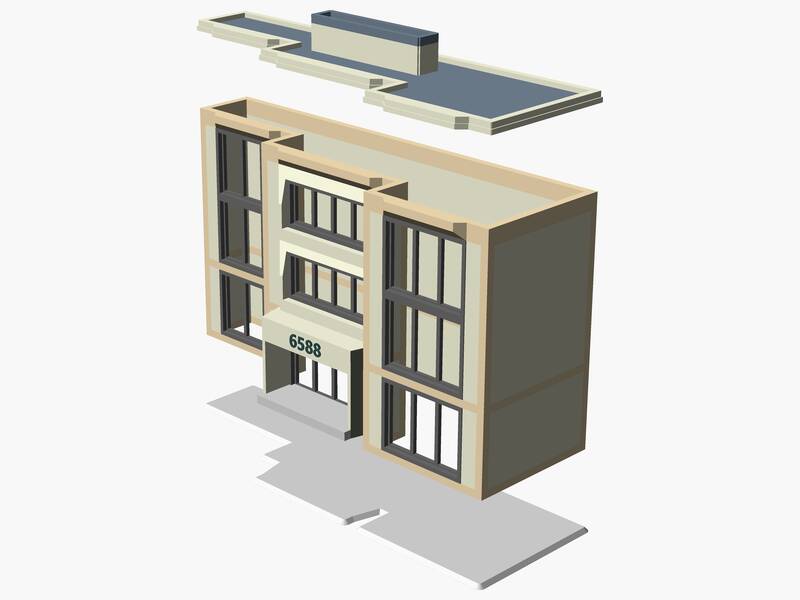

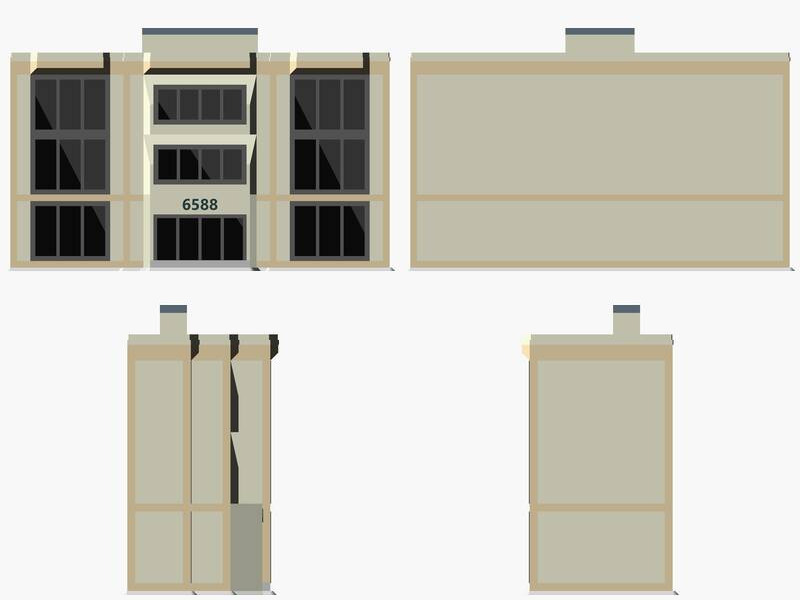

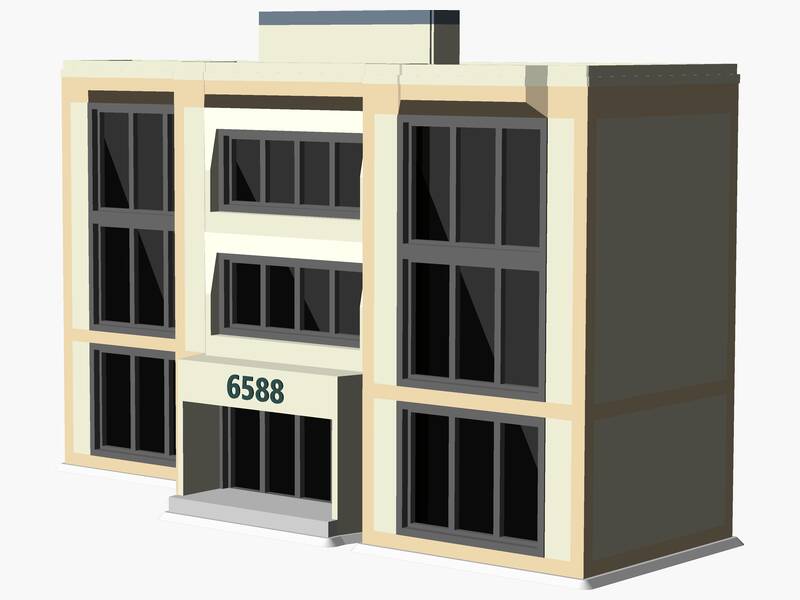

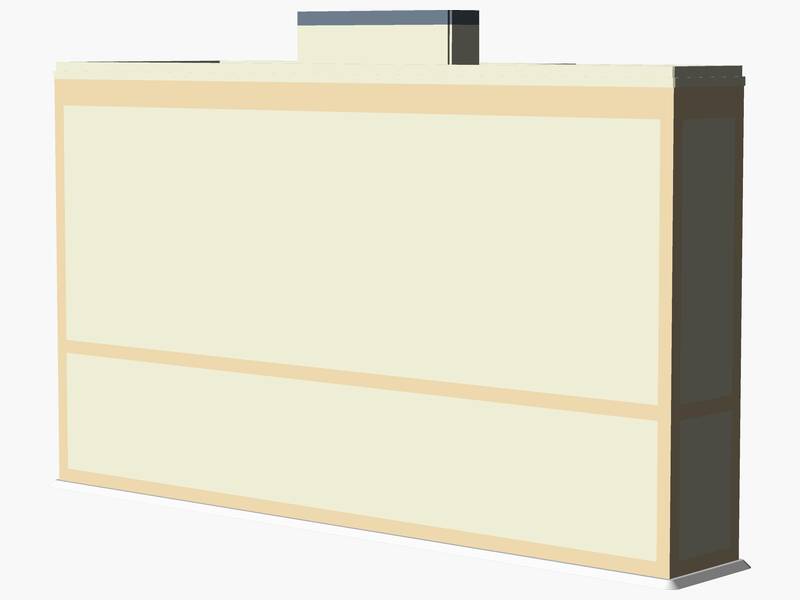

A 1/87 scale model of a contemporary urban 3-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 205 x 70 x 128 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/87
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation
PartX (mm)Y (mm)Z (mm)
Assembly X1 205.44 69.76 127.96
Perimeter X1 #1 199.83 66.61 108.68
Wall X1 #2 59.60 108.68 3.51
Wall X2 #3 59.60 108.68 7.01
Wall X1 #4 77.13 108.68 21.03
Wall X2 #5 17.53 108.68 3.51
Wall X1 #6 196.32 108.68 3.51
Wall X1 #7 24.54 108.68 3.51
Roof X1 #8 200.53 67.31 17.53
Base X1 #9 205.44 68.71 1.79
