Contemporary urban architecture Mixed-use mid-rise

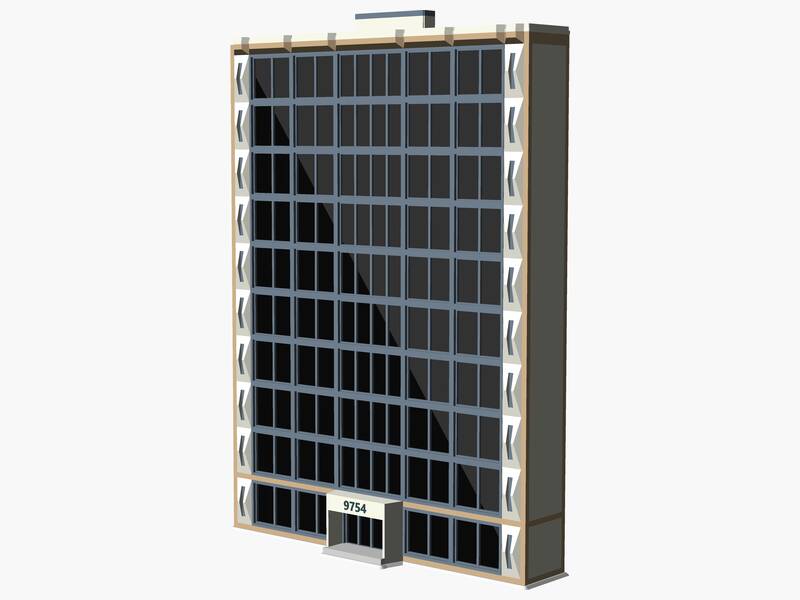

A 1/160 scale model of a contemporary urban 10-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 136 x 35 x 190 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/160
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation
PartX (mm)Y (mm)Z (mm)
Assembly X1 136.49 35.46 189.67
Perimeter X1 #1 133.44 32.41 179.19
Wall X2 #2 20.97 179.19 1.91
Wall X1 #3 131.53 179.19 1.91
Wall X1 #4 131.53 179.19 11.44
Roof X1 #5 133.82 25.16 9.53
Base X1 #6 136.49 35.46 0.97
