Architecture / Mixed-use mid-rise
Build Guide ·
Contemporary urban architecture Mixed-use mid-rise

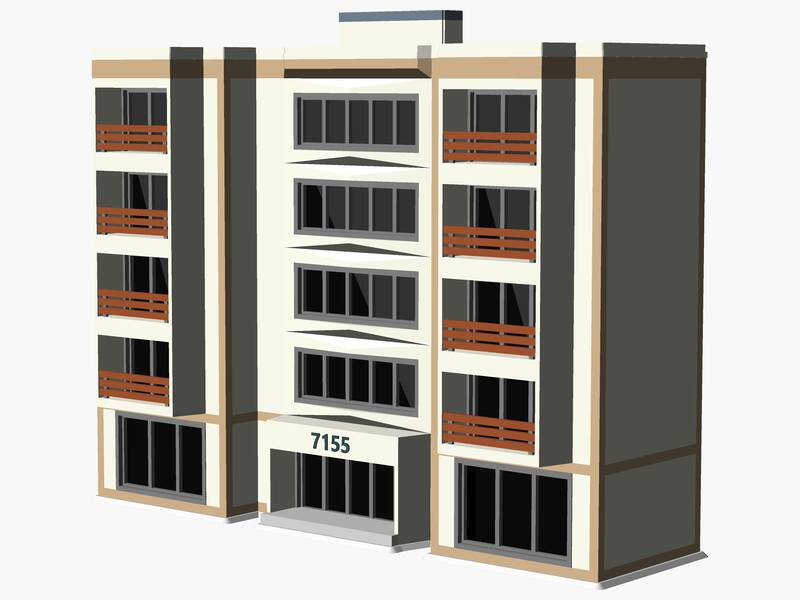

A 1/160 scale model of a contemporary urban 5-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 133 x 44 x 104 mm.
Specifications
- Type
- Contemporary urban architecture
- Scale
- 1/160
- Roof Type
- Flat parapet roof
- Roof Material
- EPDM/TPO membrane roofing
- Siding
- Panelized composite facade with smooth architectural cladding
- Foundation
- Concrete slab foundation

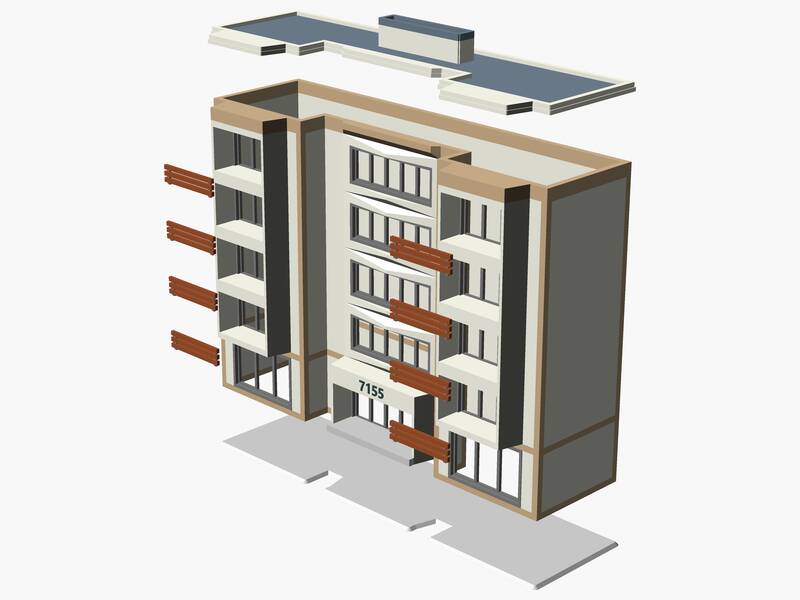

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly X1 | 132.67 | 43.65 | 103.89 |
| Perimeter X1 #1 | 129.62 | 41.94 | 93.41 |
| Wall X2 #2 | 32.41 | 93.41 | 1.91 |
| Wall X2 #3 | 36.22 | 93.41 | 9.53 |
| Wall X1 #4 | 55.28 | 93.41 | 11.44 |
| Wall X2 #5 | 9.53 | 93.41 | 1.91 |
| Wall X1 #6 | 127.72 | 93.41 | 1.91 |
| Railing X8 #7 | 20.97 | 5.72 | 0.95 |
| Roof X1 #8 | 130.01 | 42.32 | 9.53 |
| Base X1 #9 | 132.67 | 37.36 | 0.97 |
