Contemporary urban architecture Mixed-use mid-rise
Architecture / Mixed-use mid-rise Build Guide ·

Contemporary urban architecture Mixed-use mid-rise

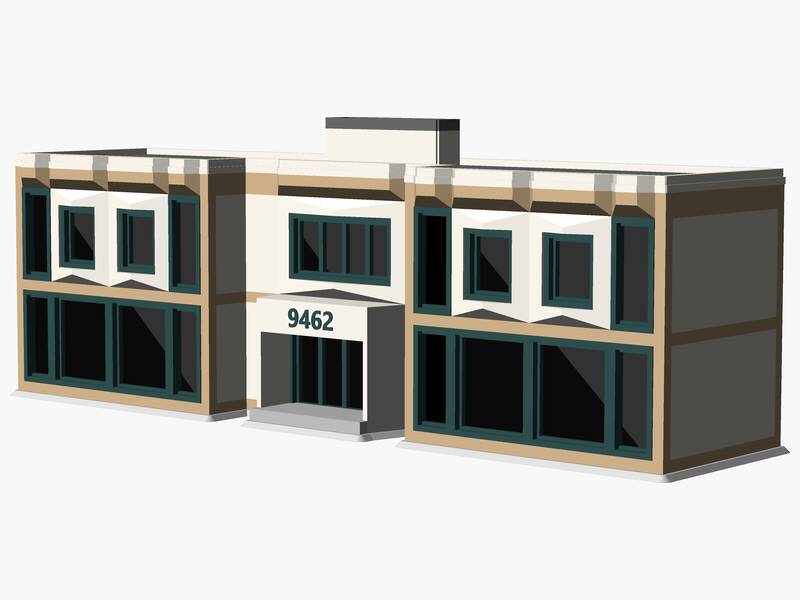

A 1/87 scale model of a contemporary urban 2-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 269 x 70 x 96 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/87
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation

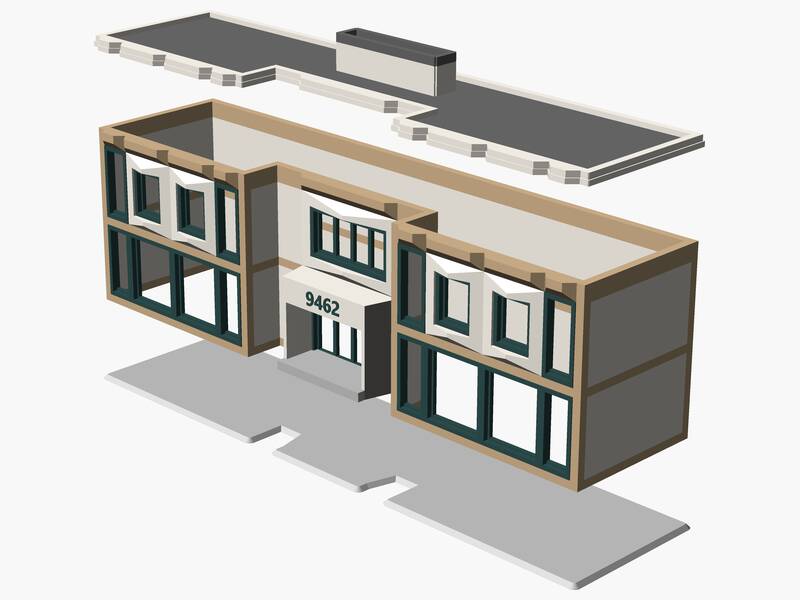

PartX (mm)Y (mm)Z (mm)
Assembly X1 268.54 69.76 96.41
Perimeter X1 #1 262.93 66.61 77.13
Wall X2 #2 59.60 77.13 3.51
Wall X1 #3 84.14 77.13 21.03
Wall X2 #4 87.64 77.13 7.01
Wall X2 #5 17.53 77.13 3.51
Wall X1 #6 259.43 77.13 3.51
Roof X1 #7 263.63 67.31 17.53
Base X1 #8 268.54 68.71 1.79
