Contemporary urban architecture Mixed-use mid-rise

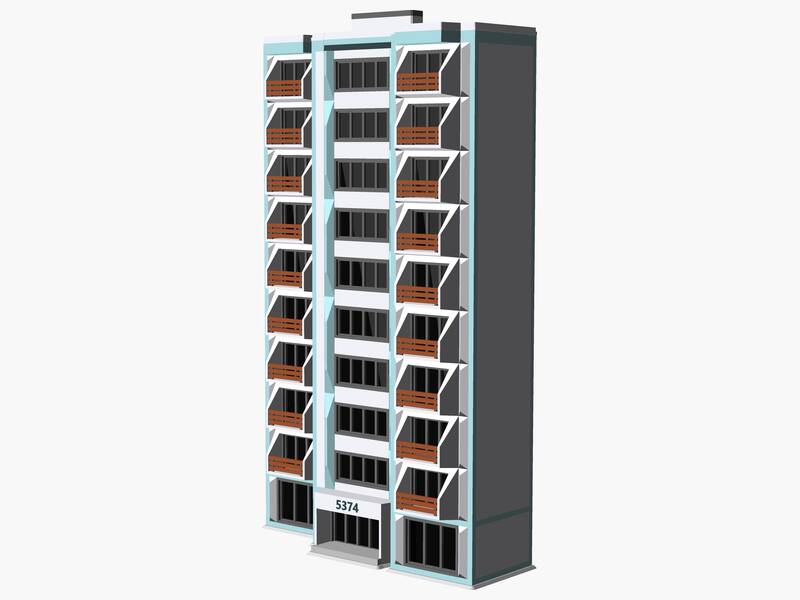

A 1/160 scale model of a contemporary urban 10-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 114 x 44 x 190 mm.
Specifications
- Type
- Contemporary urban architecture
- Scale
- 1/160
- Roof Type
- Flat parapet roof
- Roof Material
- EPDM/TPO membrane roofing
- Siding
- Panelized composite facade with smooth architectural cladding
- Foundation
- Concrete slab foundation
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly X1 | 113.61 | 43.65 | 189.67 |
| Perimeter X1 #1 | 110.56 | 41.94 | 179.19 |
| Wall X1 #2 | 32.41 | 179.19 | 1.91 |
| Wall X2 #3 | 32.41 | 179.19 | 9.53 |
| Wall X1 #4 | 43.84 | 179.19 | 11.44 |
| Wall X2 #5 | 9.53 | 179.19 | 1.91 |
| Wall X1 #6 | 108.66 | 179.19 | 1.91 |
| Wall X1 #7 | 13.34 | 179.19 | 1.91 |
| Railing X18 #8 | 17.16 | 5.72 | 0.95 |
| Roof X1 #9 | 110.94 | 42.32 | 9.53 |
| Base X1 #10 | 113.61 | 37.36 | 0.97 |
