Contemporary urban architecture Mixed-use mid-rise
Architecture / Mixed-use mid-rise Build Guide ·

Contemporary urban architecture Mixed-use mid-rise

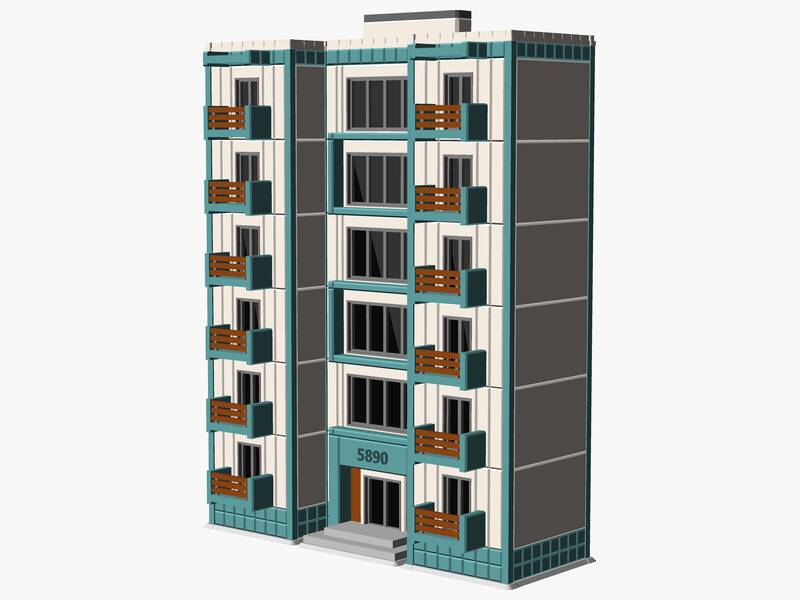

A 1/160 scale model of a contemporary urban 6-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, stacked projecting inset balconies, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 102 x 43 x 136 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/160
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation

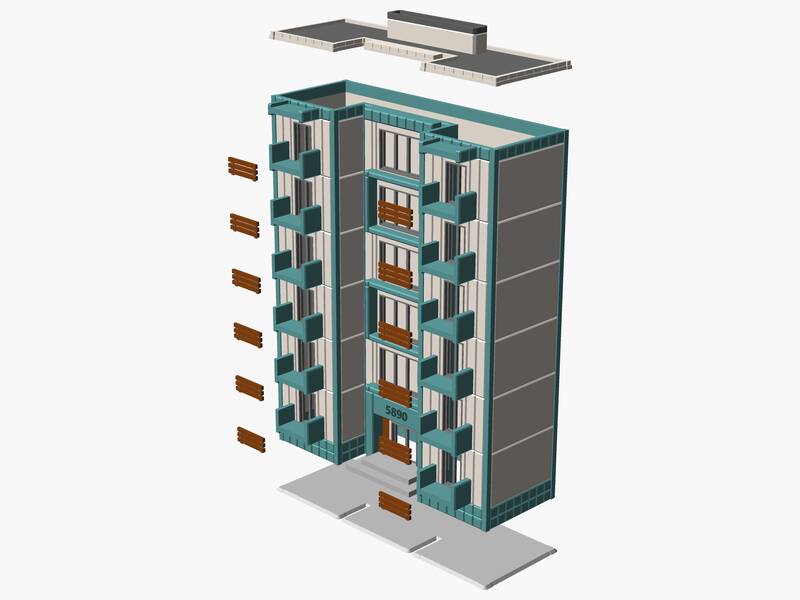

PartX (mm)Y (mm)Z (mm)
Assembly X1 102.17 43.46 136.30
Perimeter X1 #1 99.12 41.94 125.81
Wall X2 #2 28.59 125.81 9.55
Wall X2 #3 32.41 125.81 1.91
Wall X1 #4 40.03 125.81 15.27
Wall X1 #5 97.22 125.81 1.91
Wall X2 #6 13.34 125.81 1.91
Railing X12 #7 13.34 5.72 0.95
Roof X1 #8 99.51 34.69 9.53
Base X1 #9 102.17 37.36 0.97
