Contemporary urban architecture Mixed-use mid-rise
Architecture / Mixed-use mid-rise Build Guide ·

Contemporary urban architecture Mixed-use mid-rise

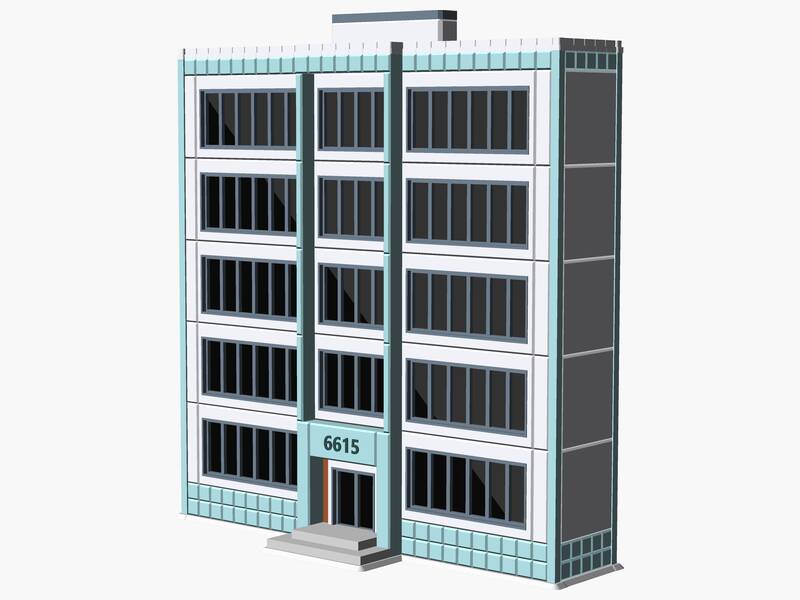

A 1/160 scale model of a contemporary urban 5-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 110 x 39 x 117 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/160
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation

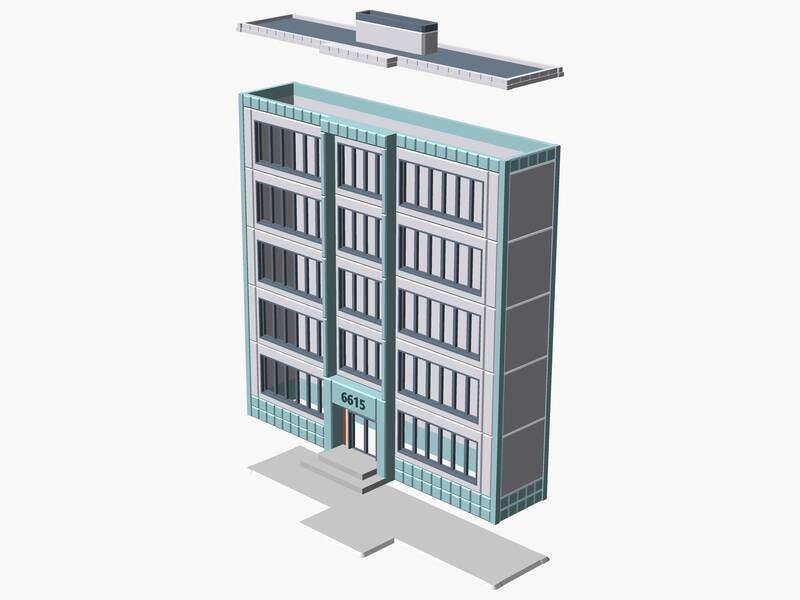

PartX (mm)Y (mm)Z (mm)
Assembly X1 109.80 39.27 117.23
Perimeter X1 #1 106.75 36.22 106.75
Wall X2 #2 20.97 106.75 1.91
Wall X1 #3 104.84 106.75 1.91
Wall X1 #4 104.84 106.75 15.27
Roof X1 #5 107.13 26.71 9.53
Base X1 #6 109.80 39.27 0.97
