Architecture / Mixed-use mid-rise
Build Guide ·
Contemporary urban architecture Mixed-use mid-rise

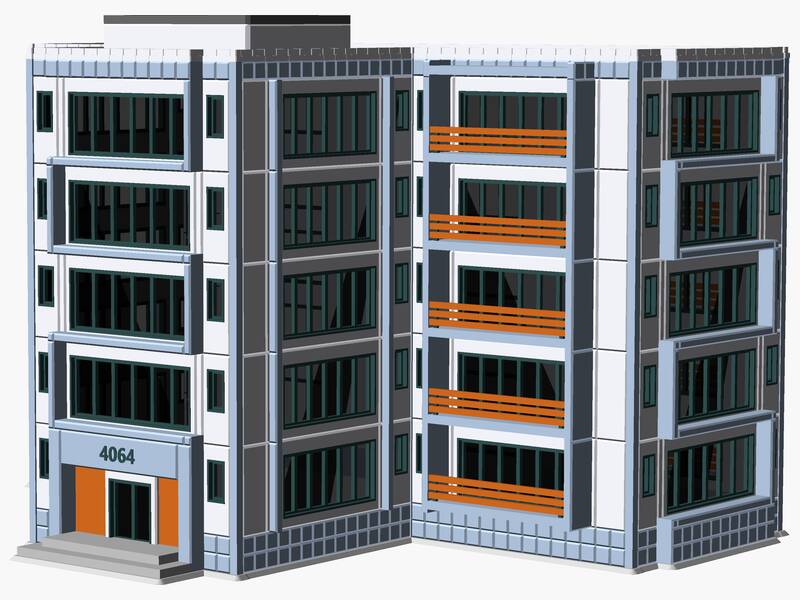

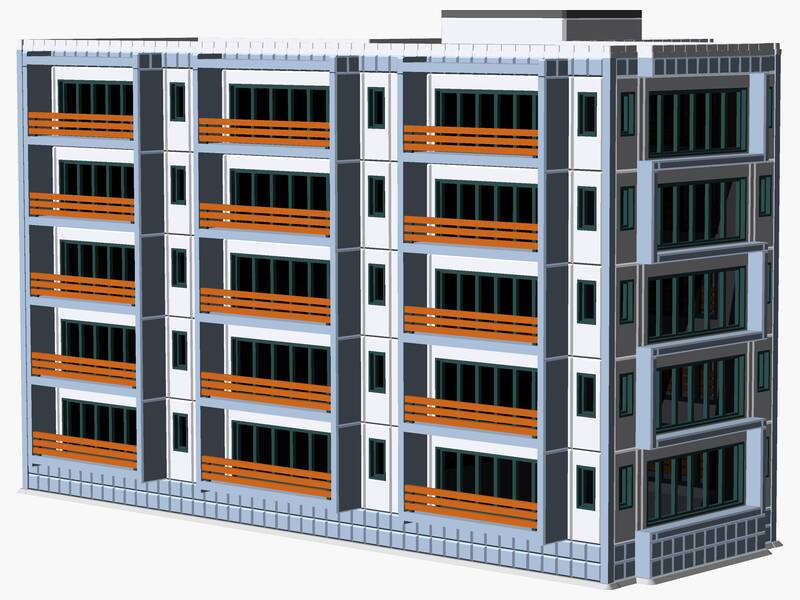

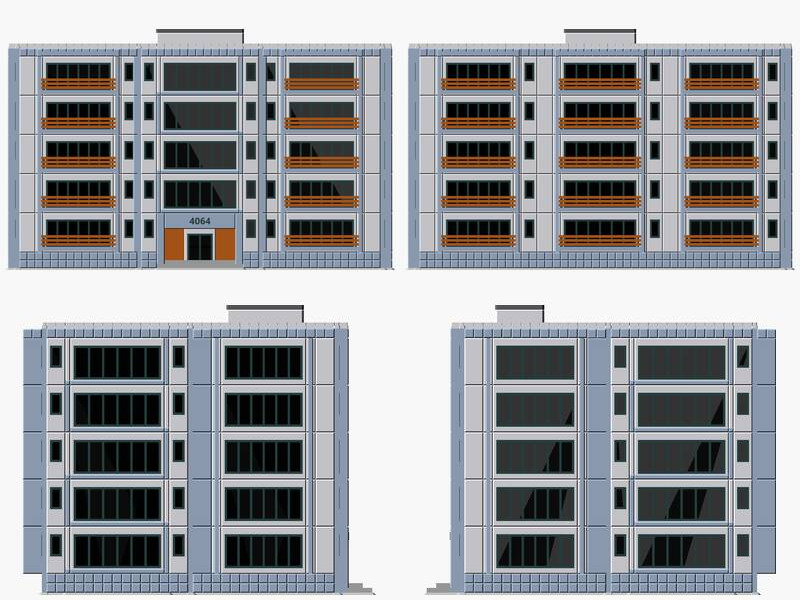

A 1/160 scale model of a contemporary urban 5-story building featuring panelized facade construction, realistic urban architectural styling, and multipart assembly designed for layouts, dioramas, and collectible city displays. Architectural features include modern glazed entry with architectural surround, recessed punched windows, compact t-shaped footprint, stacked projecting inset balconies, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 189 x 143 x 117 mm.
Specifications
- Type
- Contemporary urban architecture
- Scale
- 1/160
- Roof Type
- Flat parapet roof
- Roof Material
- EPDM/TPO membrane roofing
- Siding
- Panelized composite facade with smooth architectural cladding
- Foundation
- Concrete slab foundation

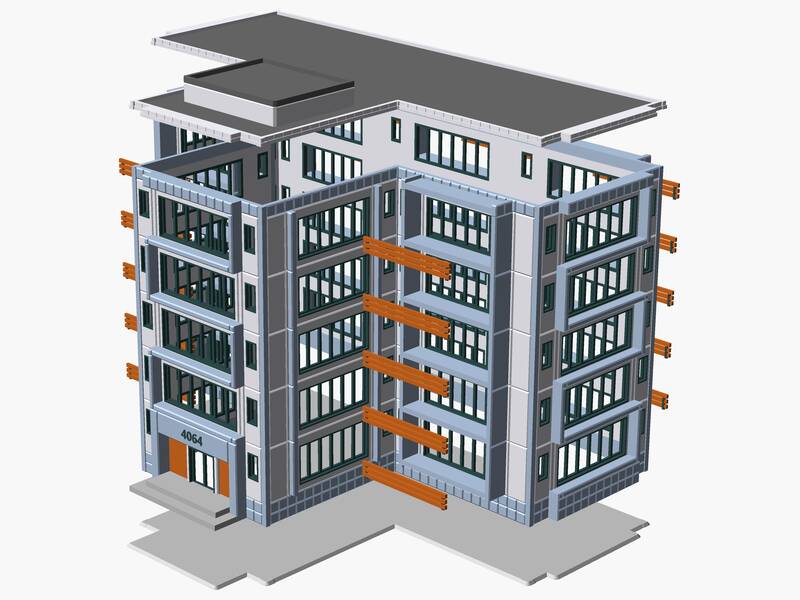

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly X1 | 189.48 | 142.59 | 117.23 |
| Perimeter X1 #1 | 186.85 | 141.06 | 106.75 |
| Wall X1 #2 | 59.09 | 106.75 | 9.55 |
| Wall X1 #3 | 59.09 | 106.75 | 3.83 |
| Wall X1 #4 | 59.09 | 106.75 | 9.55 |
| Wall X2 #5 | 59.09 | 106.75 | 5.76 |
| Wall X1 #6 | 59.09 | 106.75 | 3.83 |
| Wall X1 #7 | 59.09 | 106.75 | 15.27 |
| Wall X1 #8 | 177.28 | 106.75 | 9.55 |
| Railing X20 #9 | 36.22 | 5.72 | 0.95 |
| Railing X5 #10 | 40.03 | 5.72 | 0.95 |
| Roof X1 #11 | 186.47 | 123.93 | 9.53 |
| Base X1 #12 | 189.48 | 136.49 | 0.97 |
