Contemporary urban architecture Mixed-use mid-rise

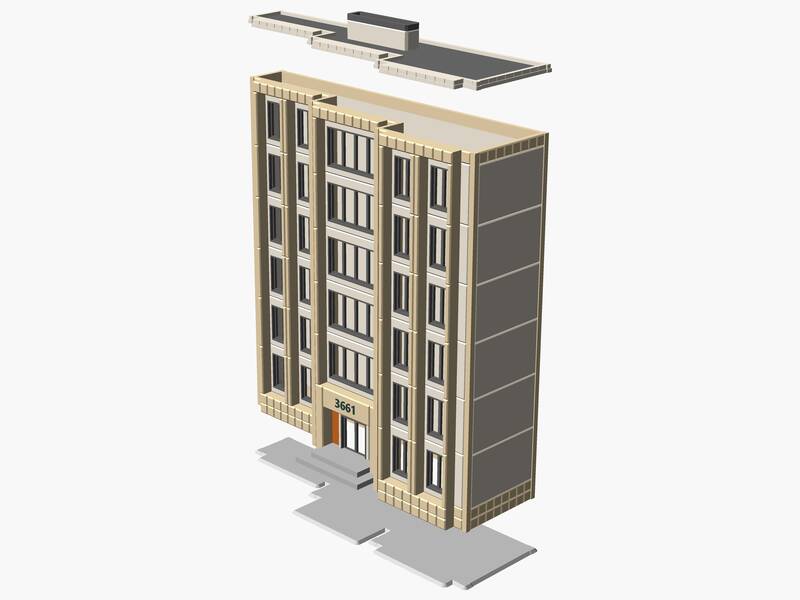

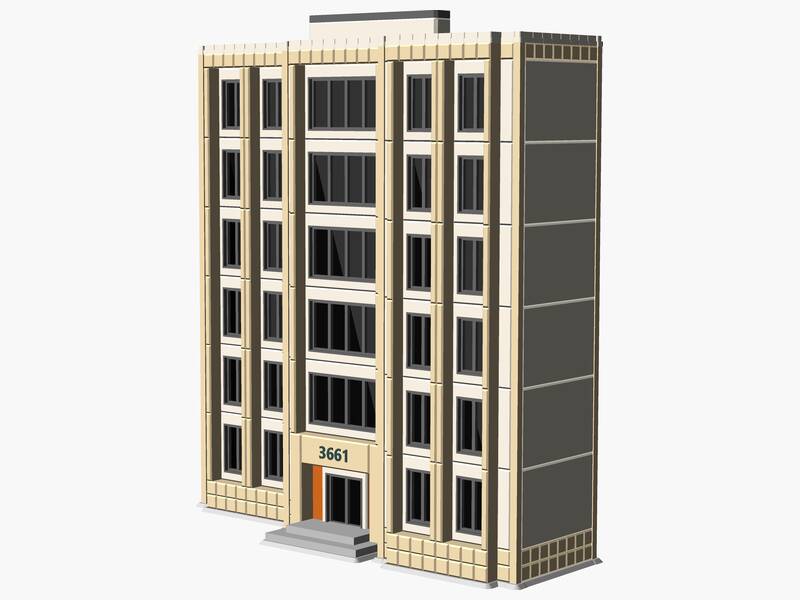

A 1/87 scale model of a contemporary urban 6-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 230 x 76 x 251 mm.
Specifications
- Type
- Contemporary urban architecture
- Scale
- 1/87
- Roof Type
- Flat parapet roof
- Roof Material
- EPDM/TPO membrane roofing
- Siding
- Panelized composite facade with smooth architectural cladding
- Foundation
- Concrete slab foundation
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly X1 | 229.98 | 75.72 | 250.66 |
| Perimeter X1 #1 | 224.37 | 70.11 | 231.38 |
| Wall X1 #2 | 59.60 | 231.38 | 3.51 |
| Wall X2 #3 | 73.62 | 231.38 | 10.55 |
| Wall X1 #4 | 73.62 | 231.38 | 28.08 |
| Wall X2 #5 | 17.53 | 231.38 | 3.51 |
| Wall X1 #6 | 220.86 | 231.38 | 3.51 |
| Wall X1 #7 | 24.54 | 231.38 | 3.51 |
| Roof X1 #8 | 225.07 | 70.15 | 17.53 |
| Base X1 #9 | 229.98 | 75.72 | 1.79 |
