Contemporary urban architecture Mixed-use mid-rise Featured
Architecture / Mixed-use mid-rise Build Guide ·

Contemporary urban architecture Mixed-use mid-rise

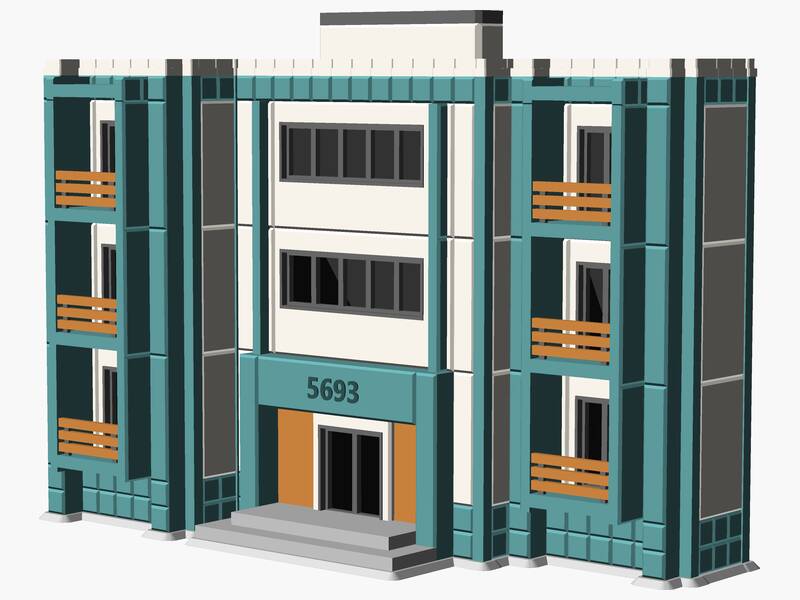

A 1/87 scale model of a contemporary urban 3-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, stacked projecting inset balconies, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 202 x 80 x 145 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/87
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation

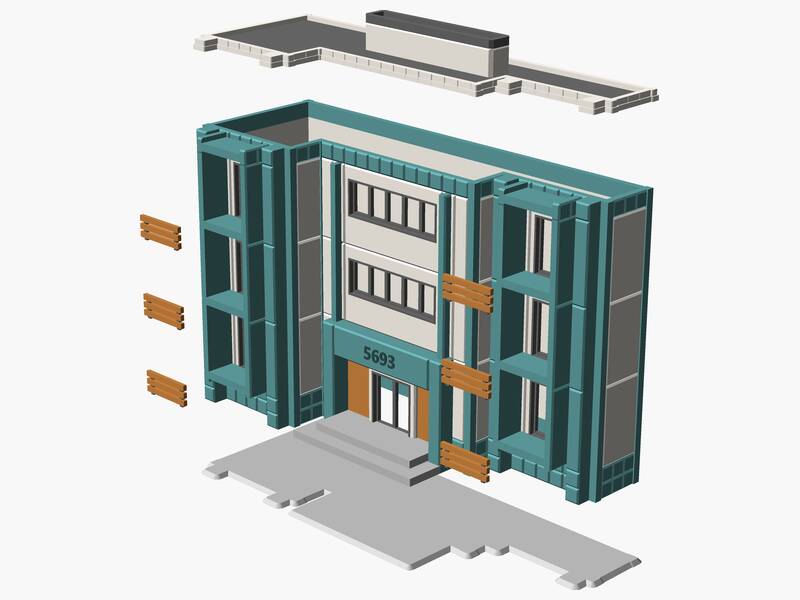

PartX (mm)Y (mm)Z (mm)
Assembly X1 201.93 79.93 145.49
Perimeter X1 #1 196.32 77.13 126.21
Wall X2 #2 52.59 126.21 17.56
Wall X1 #3 59.60 126.21 3.51
Wall X1 #4 87.64 126.21 28.08
Wall X2 #5 17.53 126.21 3.51
Wall X1 #6 192.82 126.21 3.51
Wall X1 #7 24.54 126.21 3.51
Railing X6 #8 24.54 10.52 1.75
Roof X1 #9 197.02 70.15 17.53
Base X1 #10 201.93 75.72 1.79
