Architecture / Mixed-use mid-rise
Build Guide ·
Contemporary urban architecture Mixed-use mid-rise

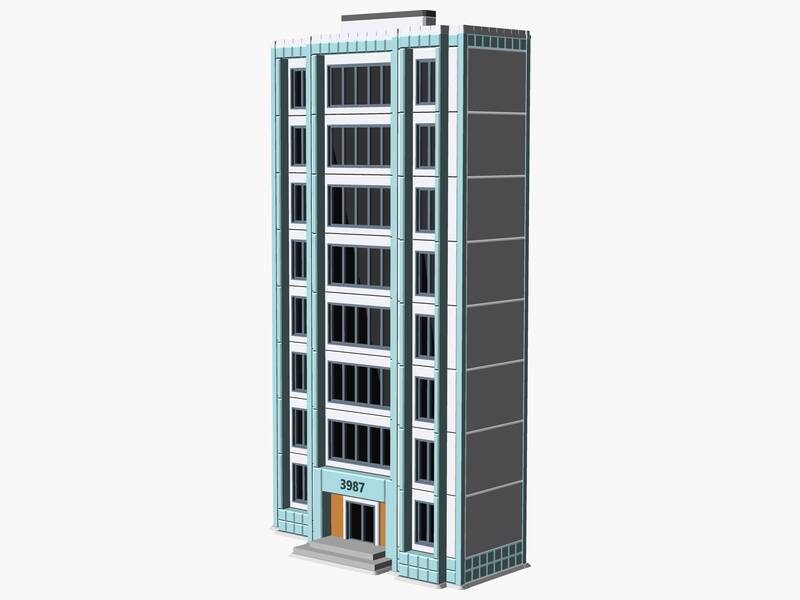

A 1/160 scale model of a contemporary urban 8-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 98 x 41 x 174 mm.
Specifications
- Type
- Contemporary urban architecture
- Scale
- 1/160
- Roof Type
- Flat parapet roof
- Roof Material
- EPDM/TPO membrane roofing
- Siding
- Panelized composite facade with smooth architectural cladding
- Foundation
- Concrete slab foundation

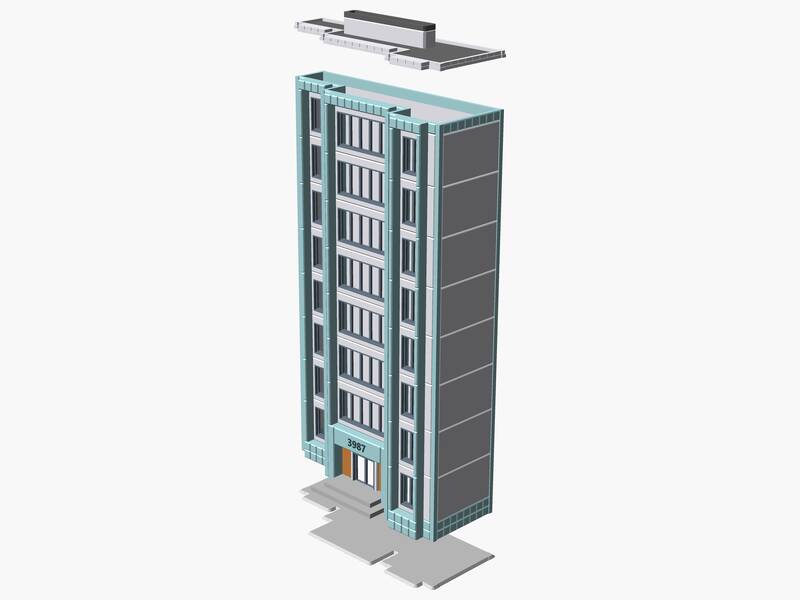

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly X1 | 98.36 | 41.18 | 174.42 |
| Perimeter X1 #1 | 95.31 | 38.12 | 163.94 |
| Wall X2 #2 | 24.78 | 163.94 | 5.74 |
| Wall X1 #3 | 32.41 | 163.94 | 1.91 |
| Wall X1 #4 | 43.84 | 163.94 | 15.27 |
| Wall X1 #5 | 93.41 | 163.94 | 1.91 |
| Wall X2 #6 | 9.53 | 163.94 | 1.91 |
| Wall X1 #7 | 13.34 | 163.94 | 1.91 |
| Roof X1 #8 | 95.69 | 38.14 | 9.53 |
| Base X1 #9 | 98.36 | 41.18 | 0.97 |
