Contemporary urban architecture Mixed-use mid-rise

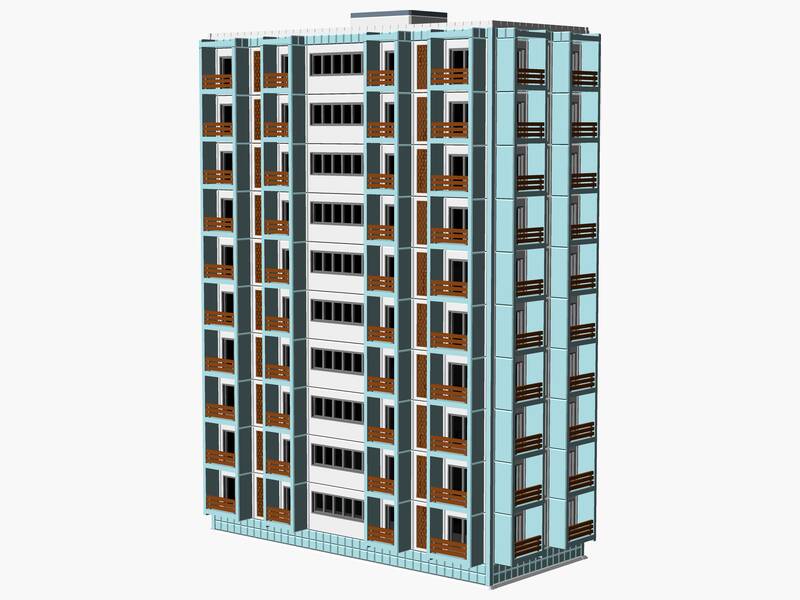

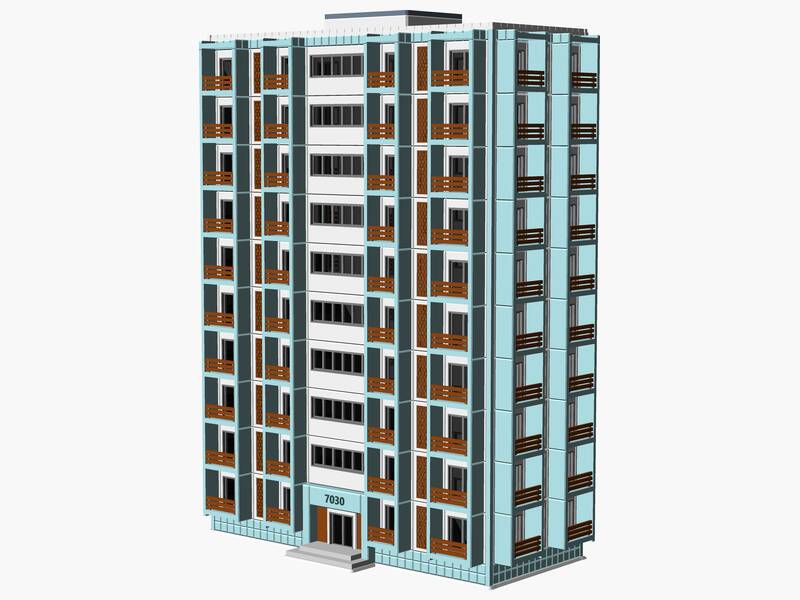

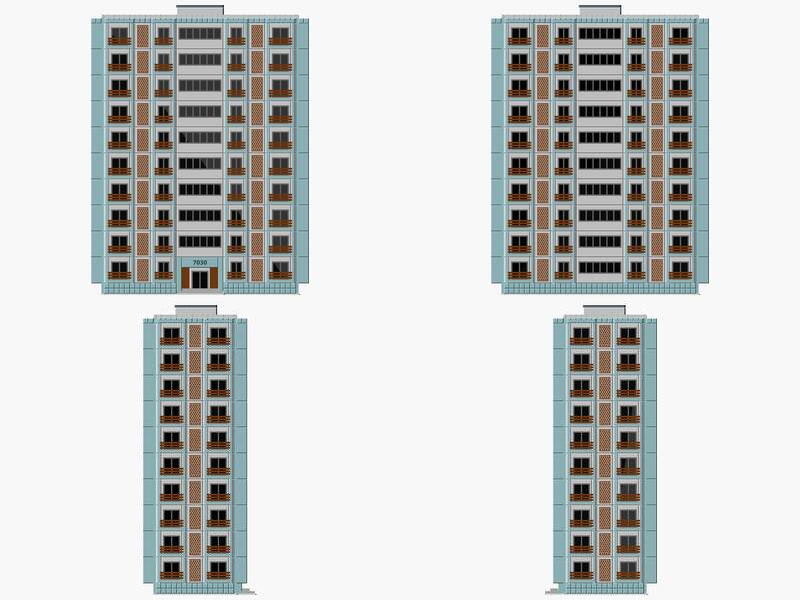

A 1/160 scale model of a contemporary urban 10-story building featuring panelized facade construction, realistic urban architectural styling, and multipart assembly designed for layouts, dioramas, and collectible city displays. Architectural features include modern glazed entry with architectural surround, recessed punched windows, compact rectilinear footprint, stacked projecting inset balconies, vertical accent feature panels, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 160 x 83 x 213 mm.

Specifications

Type
Contemporary urban architecture
Scale
1/160
Roof Type
Flat parapet roof
Roof Material
EPDM/TPO membrane roofing
Siding
Panelized composite facade with smooth architectural cladding
Foundation
Concrete slab foundation

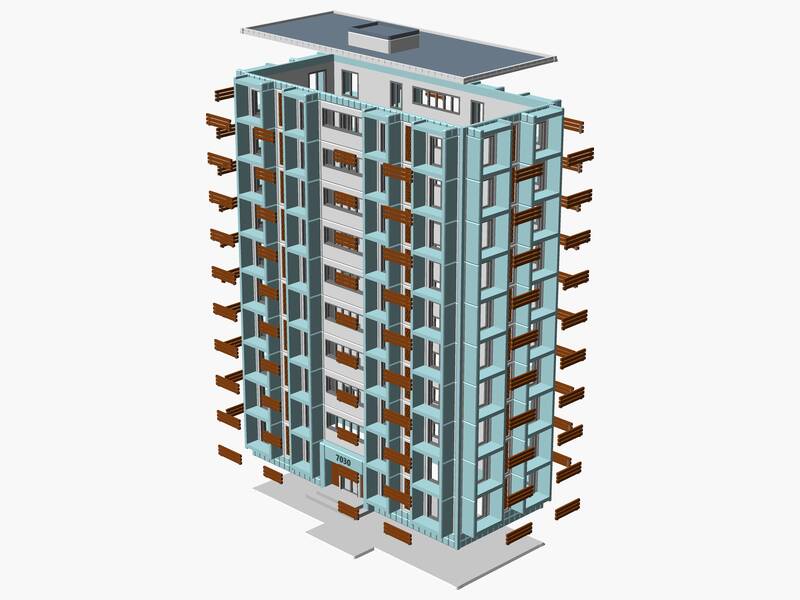

PartX (mm)Y (mm)Z (mm)
Assembly X1 160.12 83.49 212.55
Perimeter X1 #1 160.12 81.97 202.06
Wall X2 #2 59.09 202.06 9.55
Wall X1 #3 142.97 202.06 9.55
Wall X1 #4 142.97 202.06 15.27
Railing X40 #5 13.34 5.72 0.95
Railing X80 #6 17.16 5.72 0.95
Roof X1 #7 145.26 61.38 9.53
Base X1 #8 147.93 77.39 0.97
