Architecture / Mixed-use mid-rise
Build Guide ·
Contemporary urban architecture Mixed-use mid-rise

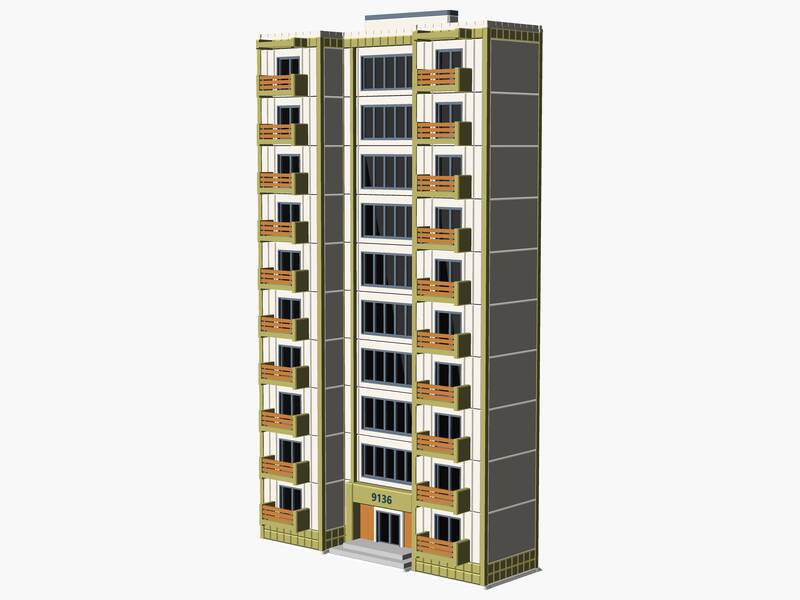

A 1/160 scale model of a contemporary urban 10-story building featuring panelized facade construction, realistic urban architectural styling, multipart assembly, and Backdrop Series™ low-relief design optimized for backdrop placement and continuous streetscape scenes. Architectural features include modern glazed entry with architectural surround, recessed punched windows, space-saving flat-back footprint, stacked projecting inset balconies, a flat roof with parapet walls and rooftop mechanical penthouse structure. The assembled model measures approximately 117 x 43 x 213 mm.
Specifications
- Type
- Contemporary urban architecture
- Scale
- 1/160
- Roof Type
- Flat parapet roof
- Roof Material
- EPDM/TPO membrane roofing
- Siding
- Panelized composite facade with smooth architectural cladding
- Foundation
- Concrete slab foundation

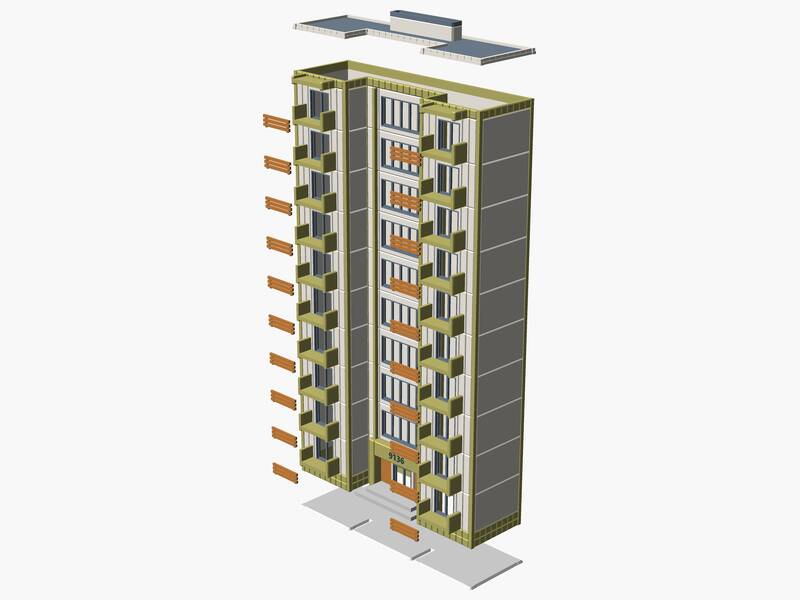

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly X1 | 117.42 | 43.46 | 212.55 |
| Perimeter X1 #1 | 114.38 | 41.94 | 202.06 |
| Wall X2 #2 | 32.41 | 202.06 | 1.91 |
| Wall X2 #3 | 32.41 | 202.06 | 9.55 |
| Wall X1 #4 | 47.66 | 202.06 | 15.27 |
| Wall X1 #5 | 112.47 | 202.06 | 1.91 |
| Wall X2 #6 | 13.34 | 202.06 | 1.91 |
| Railing X20 #7 | 17.16 | 5.72 | 0.95 |
| Roof X1 #8 | 114.76 | 34.69 | 9.53 |
| Base X1 #9 | 117.42 | 37.36 | 0.97 |
