KIT AJ-YUCSRY
Architecture / House
Manual
Ranch House

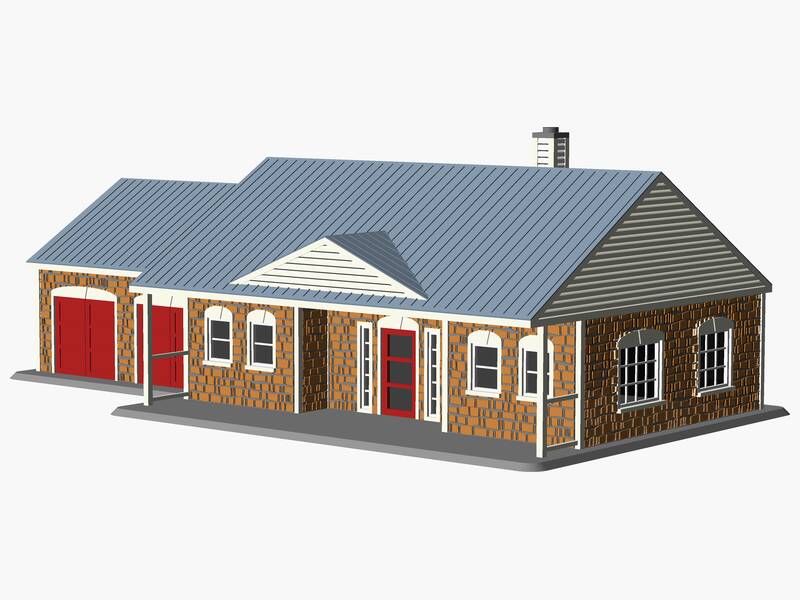

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch gable roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 16 windows and 4 exterior doors. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 220 × 123 × 79 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 16
- Exterior Doors
- 4
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings

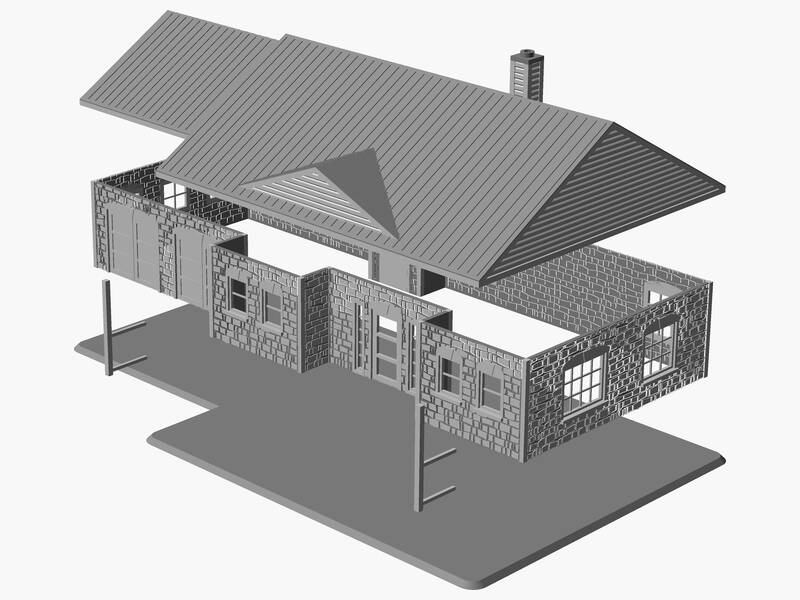

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 219.11 | 122.70 | 78.14 |
| Perimeter #1 | 210.34 | 89.40 | 31.55 |
| Wall #2 | 40.67 | 31.55 | 2.63 |
| Wall #3 | 12.27 | 31.55 | 1.75 |
| Wall #4 | 50.13 | 31.55 | 2.14 |
| Wall #5 | 12.27 | 31.55 | 1.75 |
| Wall #6 | 40.67 | 31.55 | 2.63 |
| Wall #7 | 14.02 | 31.55 | 1.75 |
| Wall #8 | 75.37 | 31.55 | 2.14 |
| Wall #9 | 71.87 | 31.55 | 2.63 |
| Wall #10 | 75.37 | 31.55 | 2.63 |
| Wall #11 | 12.27 | 31.55 | 1.75 |
| Wall #12 | 22.79 | 31.55 | 2.14 |
| Wall #13 | 12.27 | 31.55 | 1.75 |
| Wall #14 | 108.68 | 31.55 | 2.63 |
| Wall #15 | 85.89 | 31.55 | 2.63 |
| Roof #16 | 208.59 | 112.18 | 44.87 |
| Base #17 | 219.11 | 122.70 | 1.75 |
| Railing #18 | 15.78 | 31.55 | 1.75 |
| Railing #19 | 15.78 | 31.55 | 1.75 |
