KIT AJ-WYCSRY
Architecture / House
Manual
Ranch House

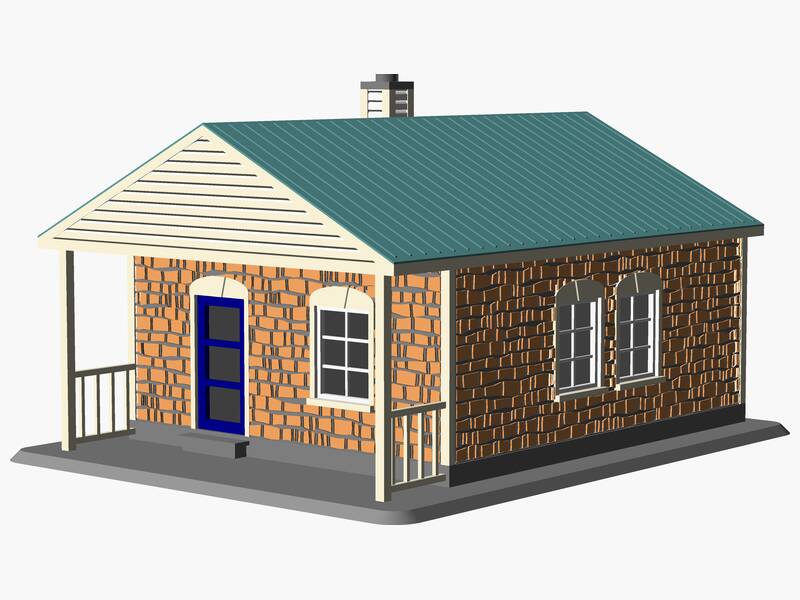

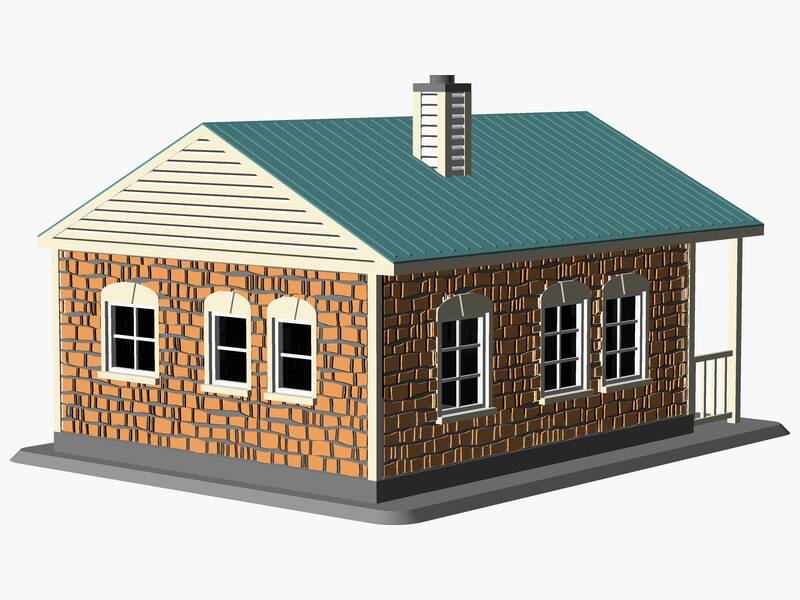

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch gable roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 9 windows and a single exterior door. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 92 × 116 × 67 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 9
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Covered front porch
- chimney with enclosed chase
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 91.15 | 115.69 | 66.46 |
| Perimeter #1 | 75.37 | 91.99 | 35.06 |
| Wall #2 | 71.87 | 35.06 | 5.26 |
| Wall #3 | 85.89 | 35.06 | 2.63 |
| Wall #4 | 71.87 | 35.06 | 2.63 |
| Wall #5 | 85.89 | 35.06 | 2.63 |
| Roof #6 | 80.63 | 105.17 | 29.68 |
| Base #7 | 91.15 | 115.69 | 1.75 |
| Railing #8 | 15.78 | 35.06 | 1.75 |
| Railing #9 | 15.78 | 35.06 | 1.75 |
