KIT AJ-V9DSRY
Architecture / House
Manual
Ranch House

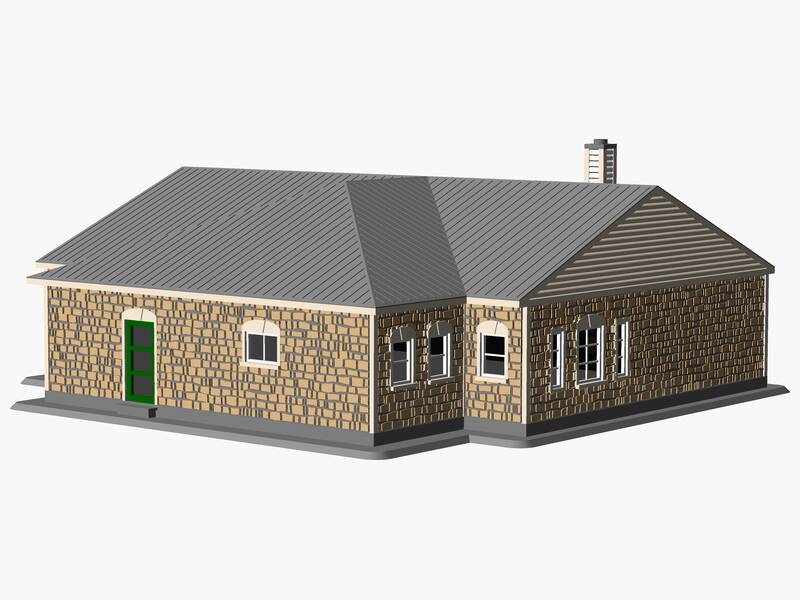

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch hip roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 15 windows and 2 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 200 × 183 × 79 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 15
- Exterior Doors
- 2
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Chimney with enclosed chase
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 199.83 | 182.30 | 78.44 |
| Perimeter #1 | 191.06 | 171.71 | 35.06 |
| Wall #2 | 124.45 | 35.06 | 5.26 |
| Wall #3 | 38.56 | 35.06 | 2.63 |
| Wall #4 | 42.07 | 35.06 | 2.63 |
| Wall #5 | 124.45 | 35.06 | 2.63 |
| Wall #6 | 187.56 | 35.06 | 5.26 |
| Wall #7 | 124.45 | 35.06 | 2.63 |
| Wall #8 | 21.03 | 35.06 | 2.63 |
| Wall #9 | 38.56 | 35.06 | 2.63 |
| Roof #10 | 189.31 | 171.78 | 41.66 |
| Base #11 | 199.83 | 182.30 | 1.75 |
