KIT AJ-S7DSRY
Architecture / House
Manual
Ranch House

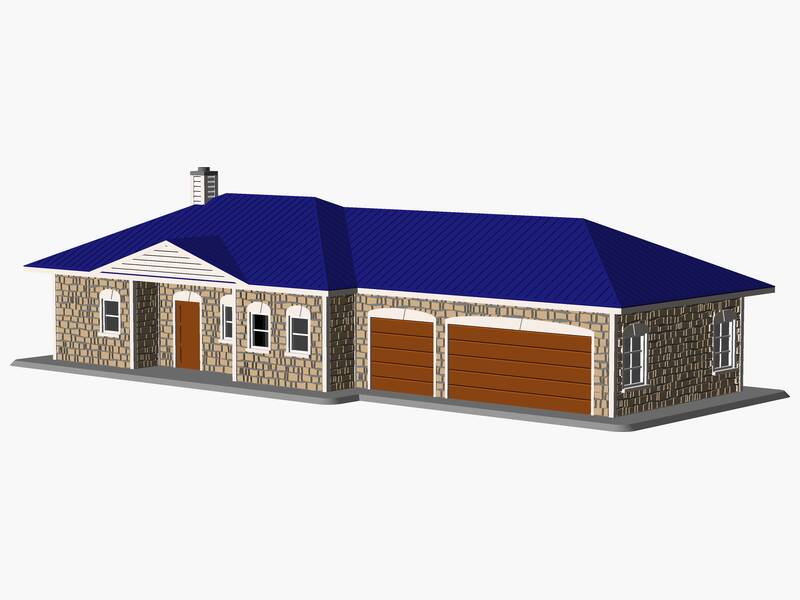

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch hip roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 13 windows and 4 exterior doors. Architectural features include an overhead garage door, chimney with enclosed chase. The assembled model measures approximately 255 × 113 × 70 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 13
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
Features
- Chimney with enclosed chase
- double-panel door
- overhead garage door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 254.17 | 112.18 | 69.96 |
| Perimeter #1 | 231.38 | 89.40 | 31.55 |
| Wall #2 | 39.61 | 31.55 | 2.63 |
| Wall #3 | 12.27 | 31.55 | 1.75 |
| Wall #4 | 48.73 | 31.55 | 2.66 |
| Wall #5 | 12.27 | 31.55 | 1.75 |
| Wall #6 | 39.61 | 31.55 | 2.63 |
| Wall #7 | 14.02 | 31.55 | 1.75 |
| Wall #8 | 99.91 | 31.55 | 2.14 |
| Wall #9 | 71.87 | 31.55 | 2.63 |
| Wall #10 | 99.91 | 31.55 | 2.63 |
| Wall #11 | 12.27 | 31.55 | 1.75 |
| Wall #12 | 22.79 | 31.55 | 2.14 |
| Wall #13 | 12.27 | 31.55 | 1.75 |
| Wall #14 | 105.17 | 31.55 | 2.63 |
| Wall #15 | 85.89 | 31.55 | 2.63 |
| Roof #16 | 243.65 | 101.67 | 36.69 |
| Base #17 | 254.17 | 112.18 | 1.75 |
