KIT AJ-N1DSRY
Architecture / House
Manual
Ranch House

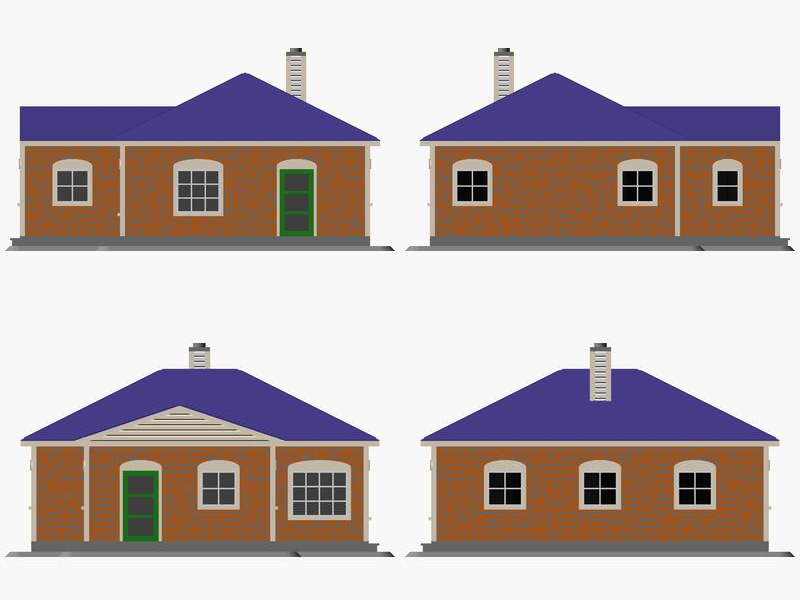

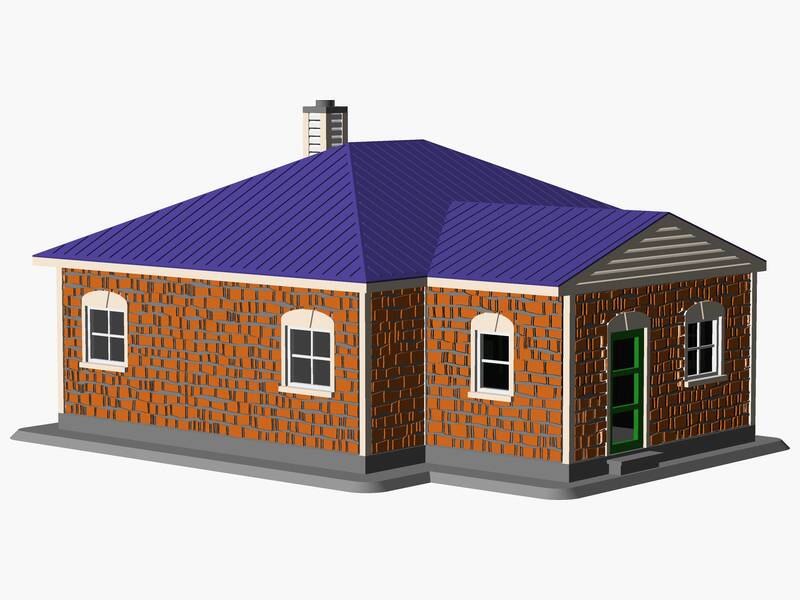

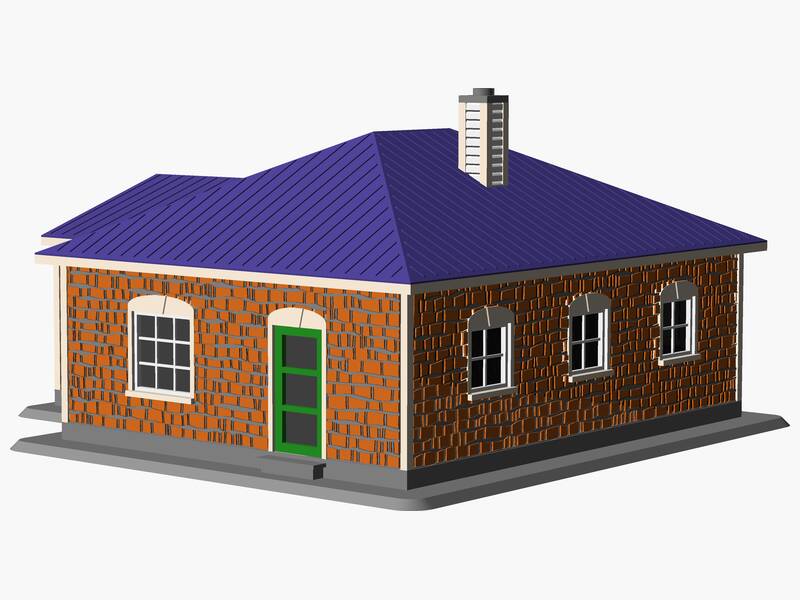

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch hip roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 10 windows and 2 exterior doors. Architectural features include a side addition, chimney with enclosed chase. The assembled model measures approximately 137 × 130 × 72 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 10
- Exterior Doors
- 2
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Side addition
- chimney with enclosed chase
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 136.72 | 129.71 | 71.13 |
| Perimeter #1 | 127.05 | 116.53 | 35.06 |
| Wall #2 | 85.89 | 35.06 | 5.26 |
| Wall #3 | 31.03 | 35.06 | 2.63 |
| Wall #4 | 35.06 | 35.06 | 2.63 |
| Wall #5 | 61.88 | 35.06 | 5.26 |
| Wall #6 | 35.06 | 35.06 | 2.63 |
| Wall #7 | 17.53 | 35.06 | 1.75 |
| Wall #8 | 85.89 | 35.06 | 2.63 |
| Wall #9 | 110.43 | 35.06 | 2.63 |
| Roof #10 | 126.21 | 119.20 | 34.36 |
| Base #11 | 136.72 | 129.71 | 1.75 |
