KIT AJ-EADSRY
Architecture / House
Manual
Ranch House

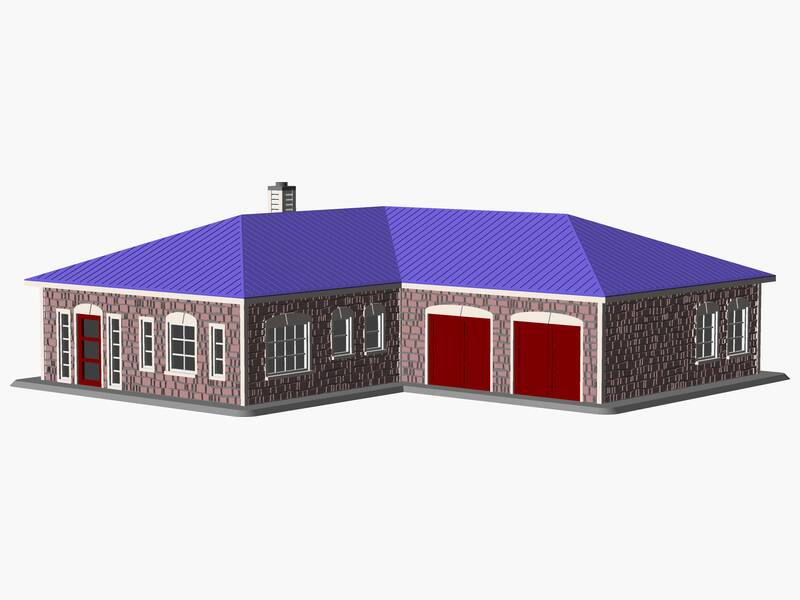

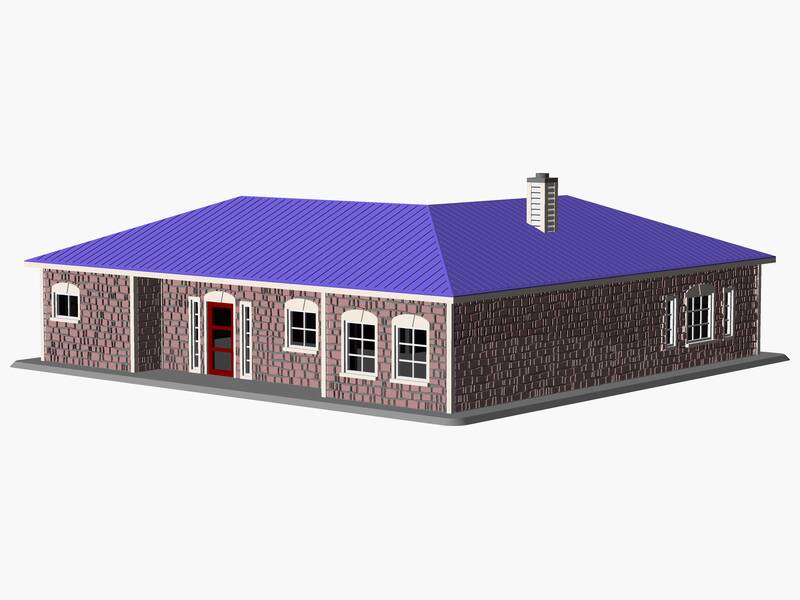

A 1/87 scale model of a ranch-style house. It features a 5/12 pitch hip roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 19 windows and 4 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 193 × 186 × 66 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 10
- Windows
- 19
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
Features
- Chimney with enclosed chase
- double-panel door
- glass-panel door
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 192.82 | 185.80 | 65.73 |
| Perimeter #1 | 177.04 | 170.03 | 31.55 |
| Wall #2 | 92.90 | 31.55 | 2.66 |
| Wall #3 | 73.62 | 31.55 | 2.63 |
| Wall #4 | 80.63 | 31.55 | 2.14 |
| Wall #5 | 92.90 | 31.55 | 2.63 |
| Wall #6 | 43.82 | 31.55 | 2.63 |
| Wall #7 | 12.27 | 31.55 | 1.75 |
| Wall #8 | 82.39 | 31.55 | 2.66 |
| Wall #9 | 12.27 | 31.55 | 1.75 |
| Wall #10 | 47.33 | 31.55 | 2.63 |
| Wall #11 | 166.52 | 31.55 | 2.63 |
| Roof #12 | 182.30 | 175.29 | 32.46 |
| Base #13 | 192.82 | 185.80 | 1.75 |
