KIT AJ-44DSRY
Featured
Architecture / House
Manual

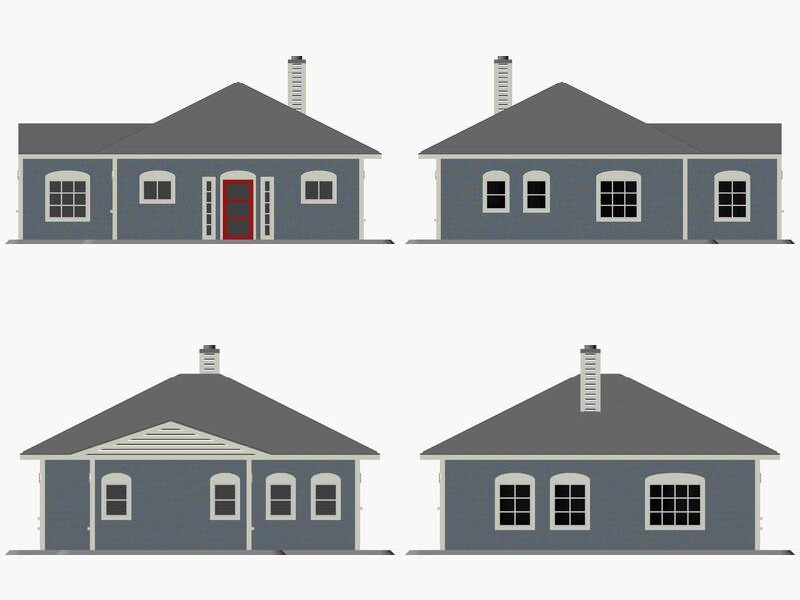

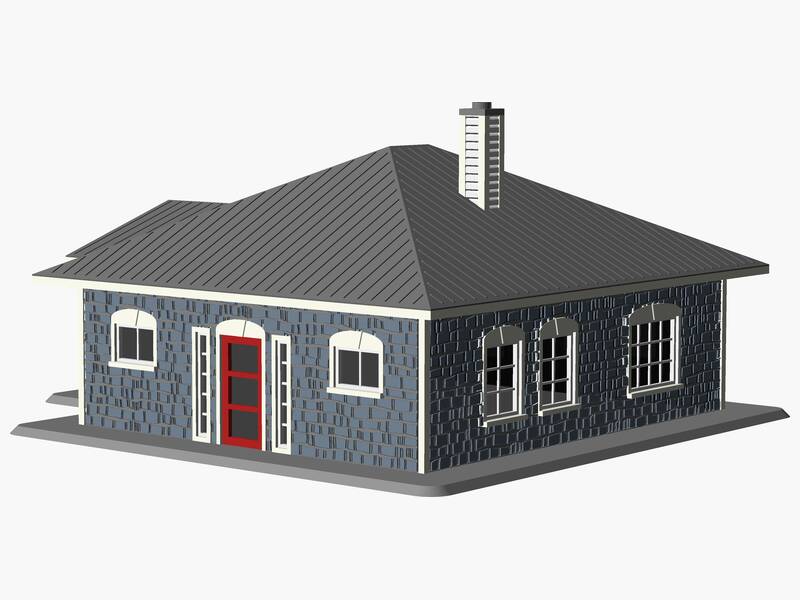

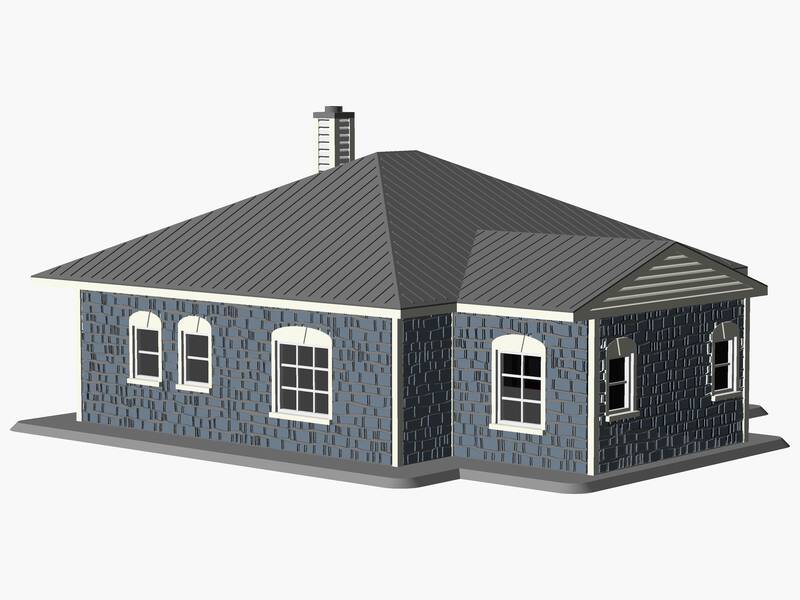

A 1/87 scale model of a ranch-style house. It features a 6/12 pitch hip roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 16 windows and a single exterior door. Architectural features include a side addition, chimney with enclosed chase. The assembled model measures approximately 153 × 137 × 74 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 16
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
Features
- Side addition
- chimney with enclosed chase
- glass-panel door

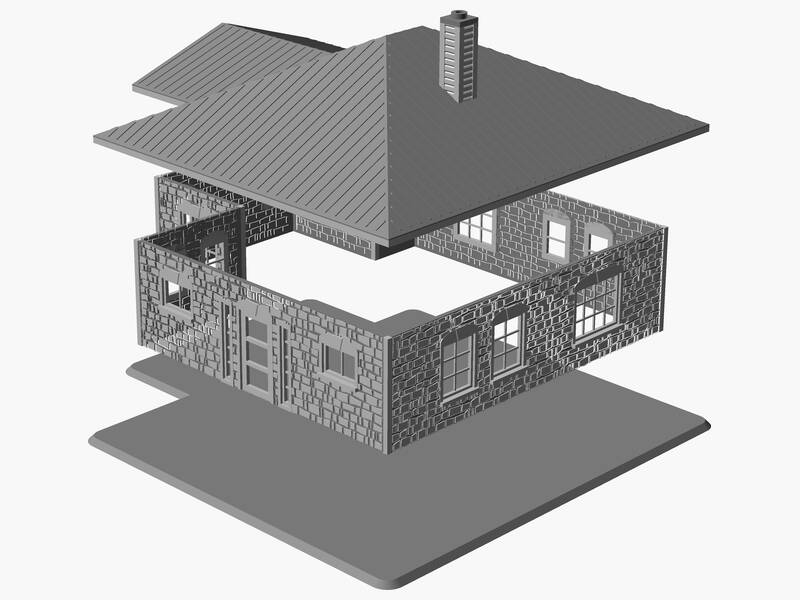

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 152.50 | 136.72 | 73.47 |
| Perimeter #1 | 136.72 | 113.94 | 31.55 |
| Wall #2 | 96.41 | 31.55 | 2.66 |
| Wall #3 | 38.04 | 31.55 | 2.63 |
| Wall #4 | 36.81 | 31.55 | 2.63 |
| Wall #5 | 54.86 | 31.55 | 2.63 |
| Wall #6 | 36.81 | 31.55 | 2.63 |
| Wall #7 | 17.53 | 31.55 | 1.75 |
| Wall #8 | 96.41 | 31.55 | 2.63 |
| Wall #9 | 110.43 | 31.55 | 2.63 |
| Roof #10 | 141.98 | 126.21 | 40.20 |
| Base #11 | 152.50 | 136.72 | 1.75 |
