KIT AJ-02DSRY
Architecture / House
Manual
Ranch House

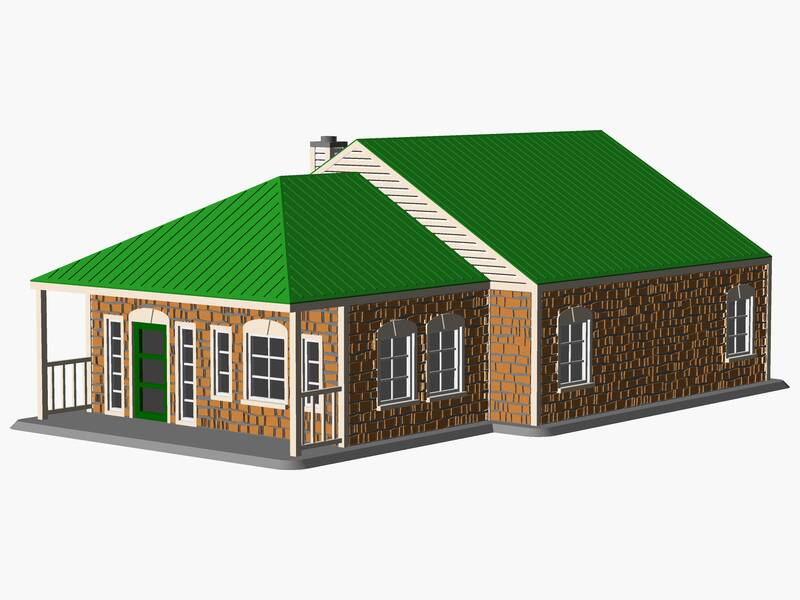

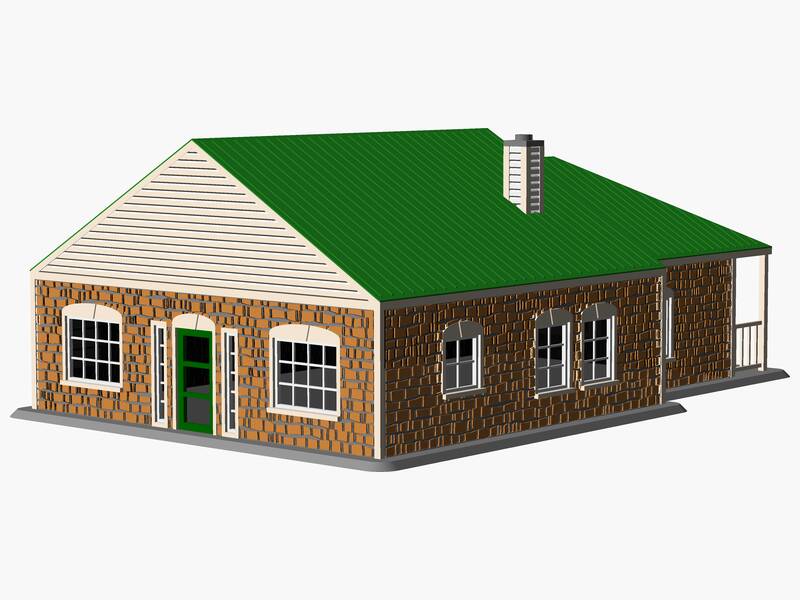

A 1/87 scale model of a ranch-style house. It features a 7/12 pitch gable roof. Exterior materials include stone veneer siding with a standing seam metal roof system. The structure includes 17 windows and 2 exterior doors. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 123 × 186 × 69 mm.
Specifications
- Type
- Ranch
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 17
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Stone veneer exterior siding
Features
- Covered front porch
- chimney with enclosed chase
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 122.70 | 185.80 | 68.09 |
| Perimeter #1 | 113.94 | 159.51 | 31.55 |
| Wall #2 | 82.39 | 31.55 | 2.66 |
| Wall #3 | 52.59 | 31.55 | 2.63 |
| Wall #4 | 14.02 | 31.55 | 1.75 |
| Wall #5 | 103.42 | 31.55 | 2.63 |
| Wall #6 | 110.43 | 31.55 | 2.66 |
| Wall #7 | 103.42 | 31.55 | 2.63 |
| Wall #8 | 14.02 | 31.55 | 1.75 |
| Wall #9 | 52.59 | 31.55 | 2.63 |
| Roof #10 | 112.18 | 175.29 | 34.82 |
| Base #11 | 122.70 | 185.80 | 1.75 |
| Railing #12 | 15.78 | 31.55 | 1.75 |
| Railing #13 | 15.78 | 31.55 | 1.75 |
