1 Story municipal or multifamily Building

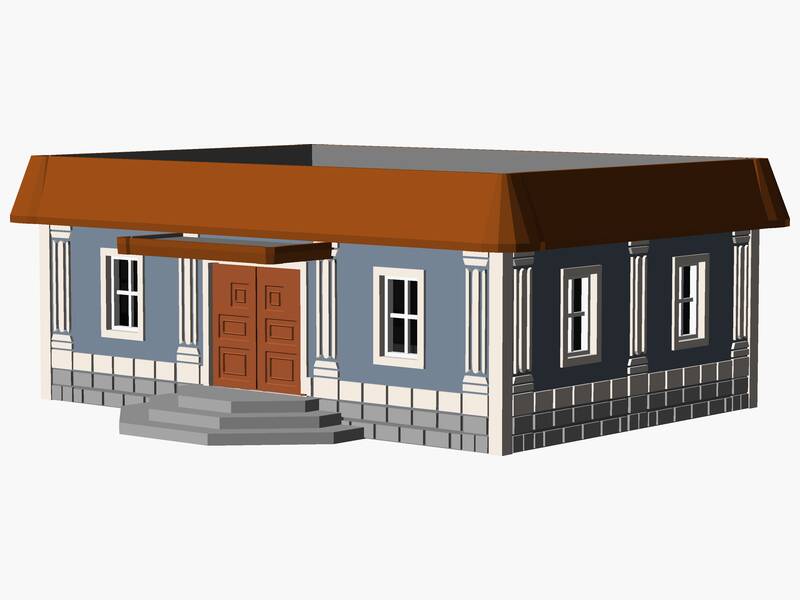

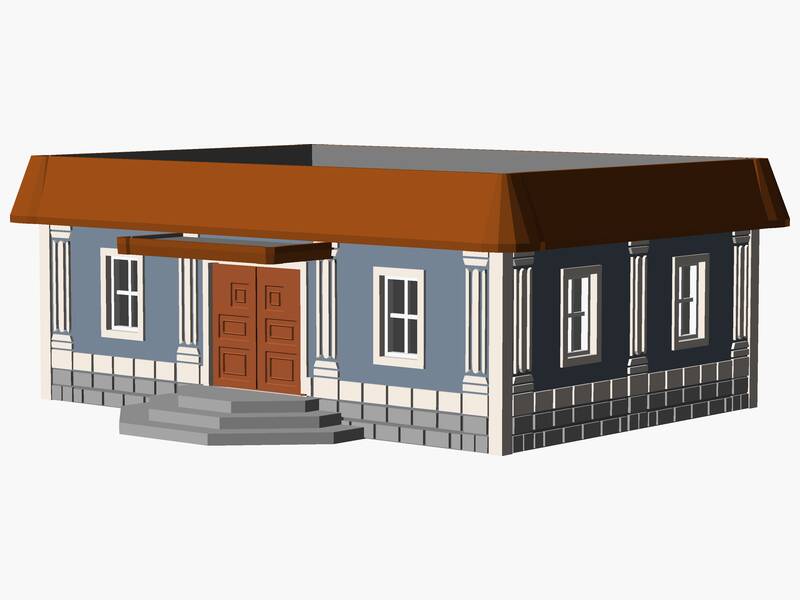

A 1/87 scale model of a 1 story municipal or multifamily-style building. The assembled model measures approximately 155 × 156 × 59 mm.
Specifications
- Type
- 1 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 4
Features
- Stucco exterior with columns and stone block decorative elements

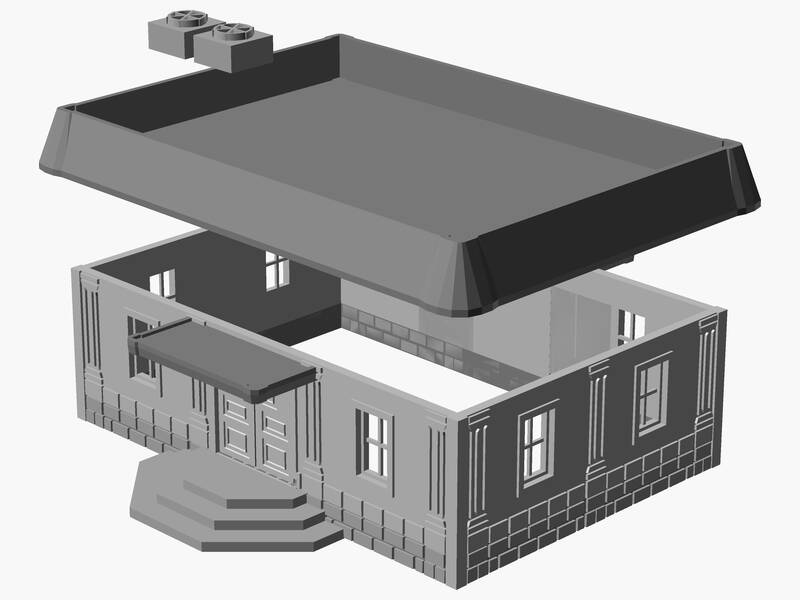

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 154.25 | 155.93 | 58.55 |
| Perimeter #1 | 140.23 | 155.93 | 42.77 |
| Wall #2 | 136.72 | 42.77 | 32.41 |
| Wall #3 | 94.66 | 42.77 | 3.51 |
| Wall #4 | 136.72 | 42.77 | 32.41 |
| Wall #5 | 94.66 | 42.77 | 3.51 |
| Roof #6 | 154.25 | 112.18 | 15.78 |
| Hvac #7 | 31.55 | 14.02 | 8.76 |
