KIT AI-MJLHRY
Architecture / Building
Manual

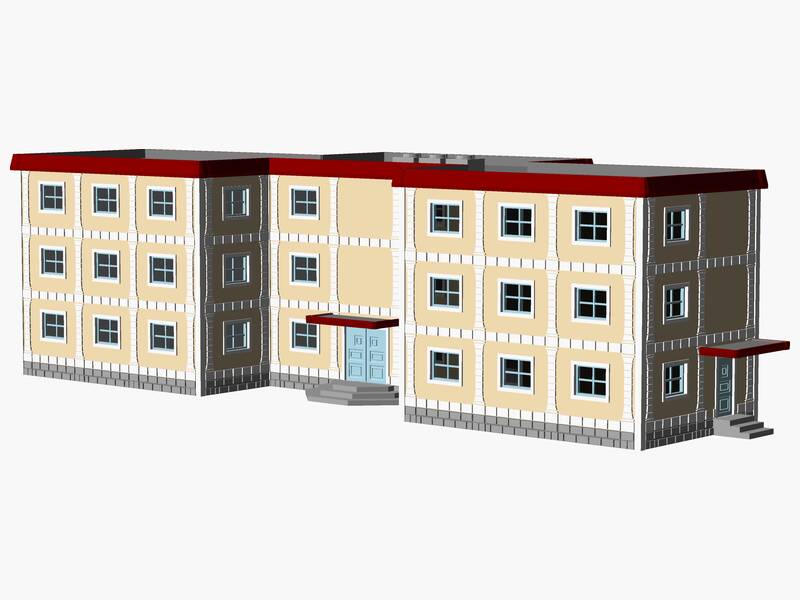

3 Story municipal or multifamily Building
A 1/87 scale model of a 3 story municipal or multifamily-style building. The assembled model measures approximately 455 × 158 × 126 mm.
Specifications
- Type
- 3 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 12
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 454.34 | 157.76 | 125.16 |
| Perimeter #1 | 454.34 | 150.75 | 112.89 |
| Wall #2 | 136.72 | 112.89 | 32.41 |
| Wall #3 | 52.59 | 112.89 | 3.51 |
| Wall #4 | 136.72 | 112.89 | 3.51 |
| Wall #5 | 94.66 | 112.89 | 23.86 |
| Wall #6 | 136.72 | 112.89 | 3.51 |
| Wall #7 | 52.59 | 112.89 | 3.51 |
| Wall #8 | 136.72 | 112.89 | 3.51 |
| Wall #9 | 52.59 | 112.89 | 3.51 |
| Wall #10 | 136.72 | 112.89 | 3.51 |
| Wall #11 | 94.66 | 112.89 | 23.86 |
| Wall #12 | 136.72 | 112.89 | 3.51 |
| Wall #13 | 52.59 | 112.89 | 3.51 |
| Roof #14 | 420.69 | 157.76 | 8.76 |
| Hvac #15 | 49.08 | 14.02 | 8.76 |
