KIT AI-7IMHRY
Architecture / Building
Manual

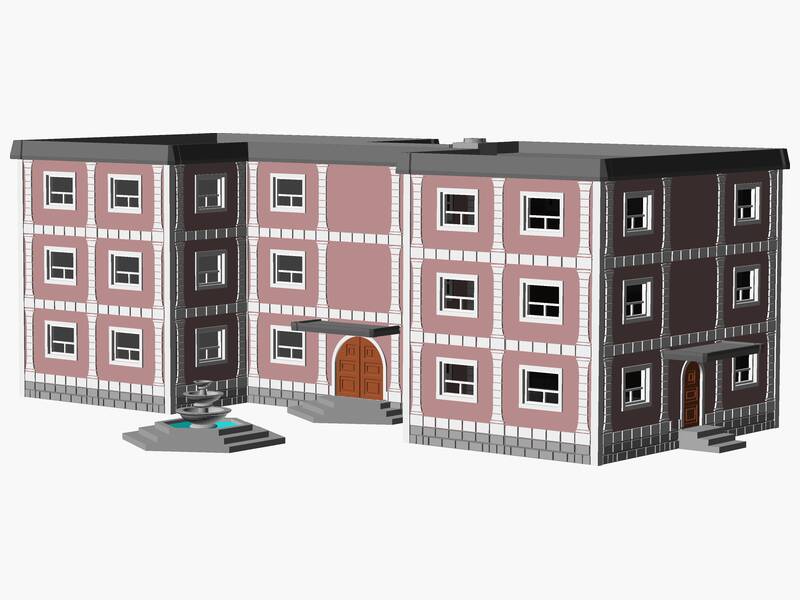

3 Story municipal or multifamily Building
A 1/87 scale model of a 3 story municipal or multifamily-style building. The assembled model measures approximately 371 × 230 × 126 mm.
Specifications
- Type
- 3 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 12
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 370.21 | 229.16 | 125.16 |
| Perimeter #1 | 370.21 | 140.23 | 112.89 |
| Wall #2 | 136.72 | 112.89 | 35.08 |
| Wall #3 | 52.59 | 112.89 | 3.51 |
| Wall #4 | 94.66 | 112.89 | 3.51 |
| Wall #5 | 136.72 | 112.89 | 23.86 |
| Wall #6 | 136.72 | 112.89 | 3.51 |
| Wall #7 | 52.59 | 112.89 | 3.51 |
| Wall #8 | 52.59 | 112.89 | 23.86 |
| Wall #9 | 52.59 | 112.89 | 3.51 |
| Wall #10 | 136.72 | 112.89 | 3.51 |
| Wall #11 | 136.72 | 112.89 | 23.86 |
| Wall #12 | 94.66 | 112.89 | 3.51 |
| Wall #13 | 52.59 | 112.89 | 3.51 |
| Roof #14 | 336.55 | 146.30 | 8.76 |
| Hvac #15 | 14.02 | 14.02 | 8.76 |
| Fountain #16 | 60.72 | 70.11 | 25.42 |
