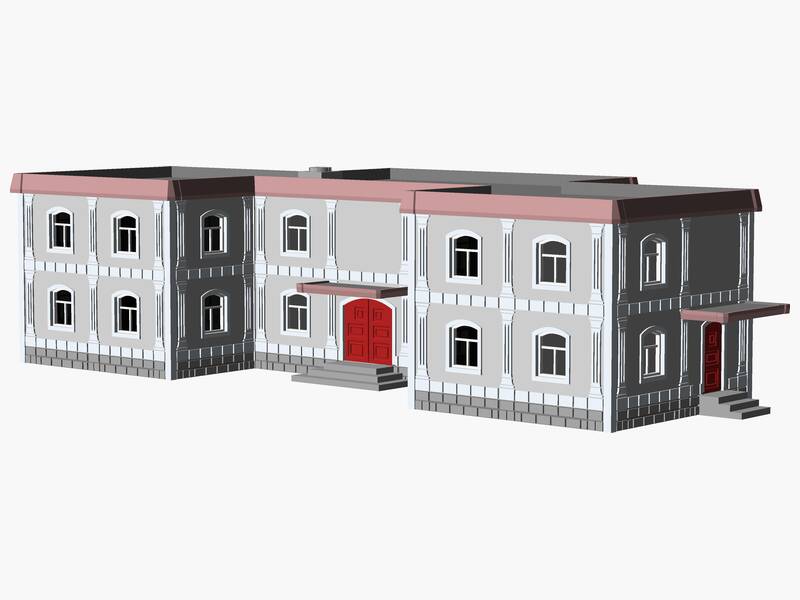

2 Story municipal or multifamily Building
A 1/87 scale model of a 2 story municipal or multifamily-style building. The assembled model measures approximately 371 × 157 × 91 mm.
Specifications
- Type
- 2 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 12
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 370.21 | 156.82 | 90.10 |
| Perimeter #1 | 370.21 | 150.75 | 77.83 |
| Wall #2 | 136.72 | 77.83 | 24.81 |
| Wall #3 | 52.59 | 77.83 | 3.51 |
| Wall #4 | 94.66 | 77.83 | 3.51 |
| Wall #5 | 94.66 | 77.83 | 23.86 |
| Wall #6 | 94.66 | 77.83 | 3.51 |
| Wall #7 | 52.59 | 77.83 | 3.51 |
| Wall #8 | 136.72 | 77.83 | 3.51 |
| Wall #9 | 52.59 | 77.83 | 3.51 |
| Wall #10 | 94.66 | 77.83 | 3.51 |
| Wall #11 | 94.66 | 77.83 | 23.86 |
| Wall #12 | 94.66 | 77.83 | 3.51 |
| Wall #13 | 52.59 | 77.83 | 3.51 |
| Roof #14 | 336.55 | 156.82 | 8.76 |
| Hvac #15 | 14.02 | 14.02 | 8.76 |
