KIT AI-62NHRY
Architecture / Building
Manual

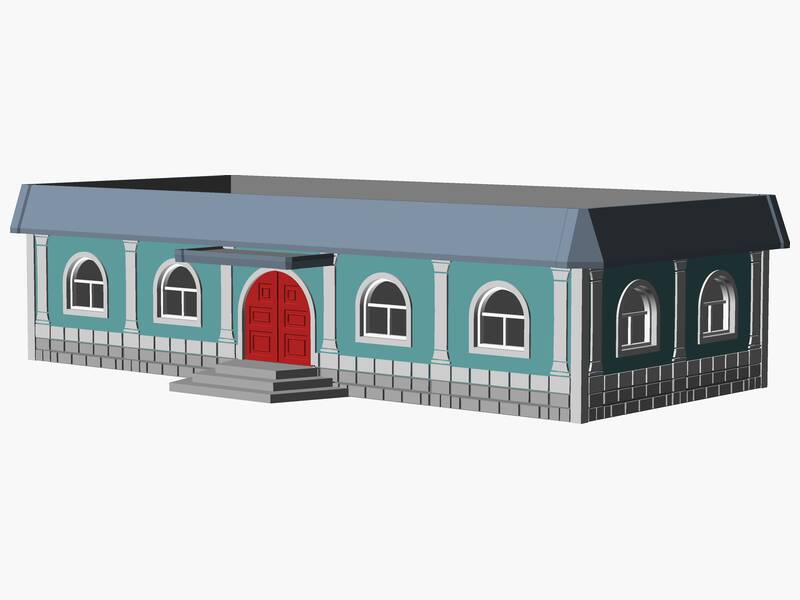

1 Story municipal or multifamily Building
A 1/87 scale model of a 1 story municipal or multifamily-style building. The assembled model measures approximately 239 × 148 × 59 mm.
Specifications
- Type
- 1 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 4
Features
- Stucco exterior with columns and stone block decorative elements

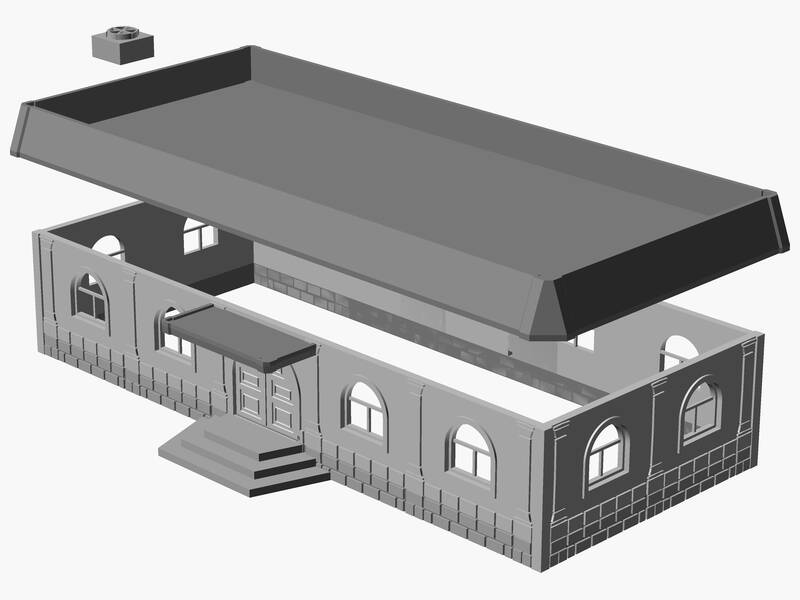

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 238.39 | 147.87 | 58.55 |
| Perimeter #1 | 224.37 | 147.87 | 42.77 |
| Wall #2 | 220.86 | 42.77 | 28.39 |
| Wall #3 | 94.66 | 42.77 | 3.51 |
| Wall #4 | 220.86 | 42.77 | 28.39 |
| Wall #5 | 94.66 | 42.77 | 3.51 |
| Roof #6 | 238.39 | 112.18 | 15.78 |
| Hvac #7 | 14.02 | 14.02 | 8.76 |
