KIT AI-50LHRY
Architecture / Building
Manual
5 Story municipal or multifamily Building

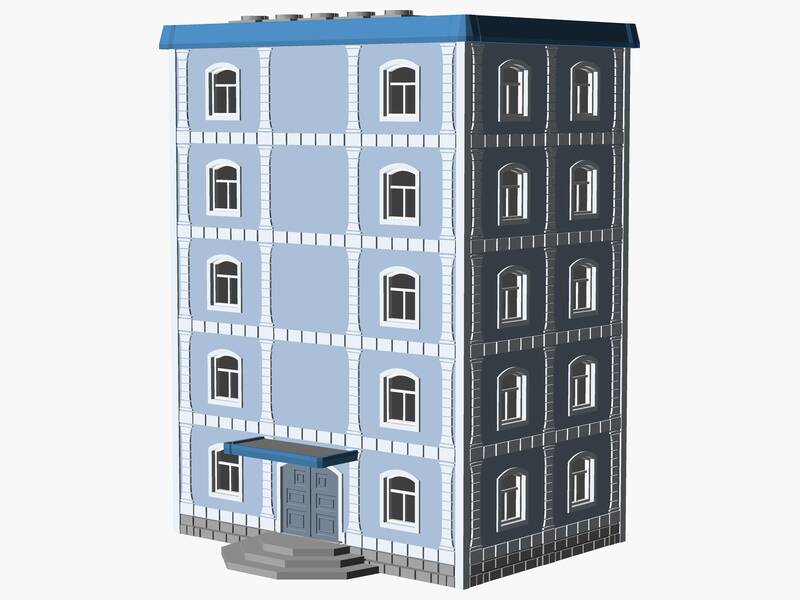

A 1/87 scale model of a 5 story municipal or multifamily-style building. The assembled model measures approximately 148 × 158 × 196 mm.
Specifications
- Type
- 5 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 4
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 147.24 | 157.04 | 195.27 |
| Perimeter #1 | 140.23 | 157.04 | 183.00 |
| Wall #2 | 136.72 | 183.00 | 32.97 |
| Wall #3 | 94.66 | 183.00 | 3.51 |
| Wall #4 | 136.72 | 183.00 | 32.97 |
| Wall #5 | 94.66 | 183.00 | 3.51 |
| Roof #6 | 147.24 | 105.17 | 8.76 |
| Hvac #7 | 84.14 | 14.02 | 8.76 |
