KIT AI-24KHRY
Architecture / Building
Manual

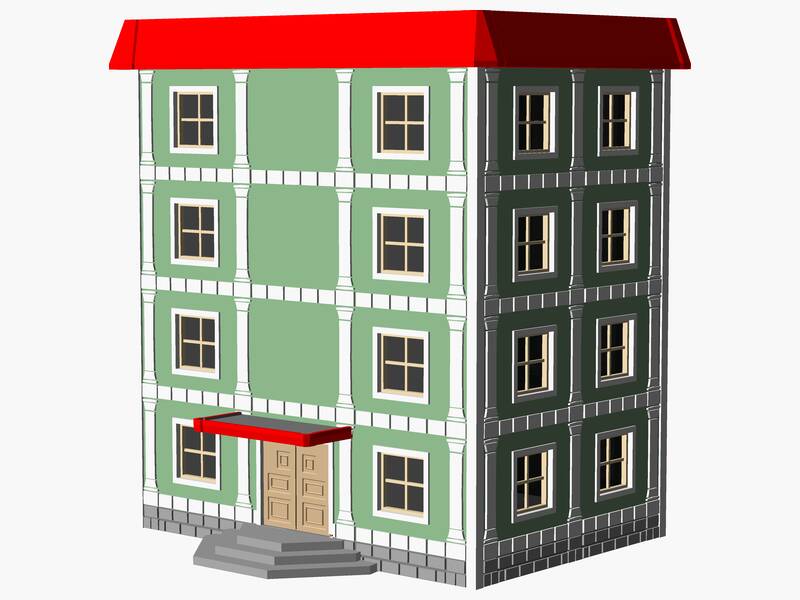

4 Story municipal or multifamily Building
A 1/87 scale model of a 4 story municipal or multifamily-style building. The assembled model measures approximately 155 × 155 × 164 mm.
Specifications
- Type
- 4 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 4
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 154.25 | 154.32 | 163.72 |
| Perimeter #1 | 140.23 | 154.32 | 147.94 |
| Wall #2 | 136.72 | 147.94 | 31.61 |
| Wall #3 | 94.66 | 147.94 | 3.51 |
| Wall #4 | 136.72 | 147.94 | 31.61 |
| Wall #5 | 94.66 | 147.94 | 3.51 |
| Roof #6 | 154.25 | 110.31 | 15.78 |
| Hvac #7 | 49.08 | 14.02 | 8.76 |
