KIT AI-22JHRY
Architecture / Building
Manual

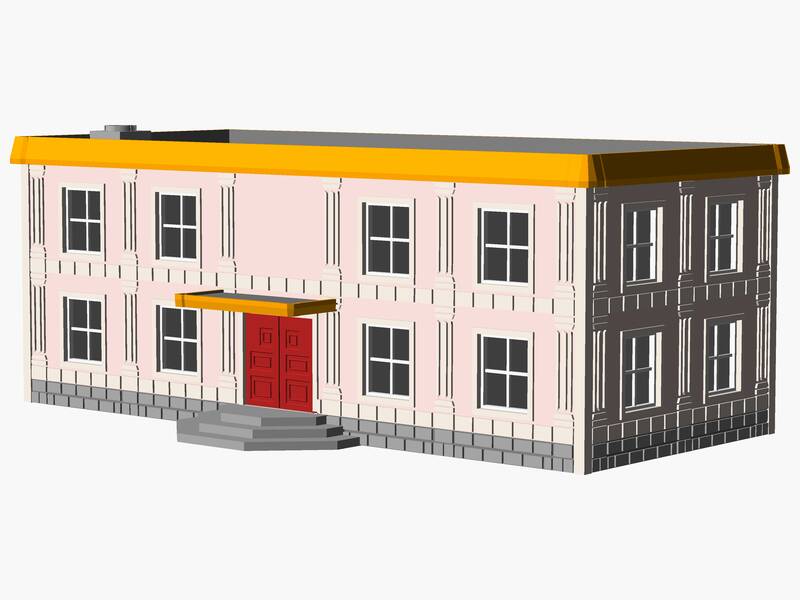

2 Story municipal or multifamily Building
A 1/87 scale model of a 2 story municipal or multifamily-style building. The assembled model measures approximately 232 × 156 × 91 mm.
Specifications
- Type
- 2 Story municipal or multifamily
- Scale
- 1/87
- Wall Panels
- 4
Features
- Stucco exterior with columns and stone block decorative elements
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 231.38 | 155.93 | 90.10 |
| Perimeter #1 | 224.37 | 155.93 | 77.83 |
| Wall #2 | 220.86 | 77.83 | 32.41 |
| Wall #3 | 94.66 | 77.83 | 3.51 |
| Wall #4 | 220.86 | 77.83 | 32.41 |
| Wall #5 | 94.66 | 77.83 | 3.51 |
| Roof #6 | 231.38 | 105.17 | 8.76 |
| Hvac #7 | 14.02 | 14.02 | 8.76 |
