KIT AH-BGS5RY
Architecture / House
Manual
Multifamily two-story House

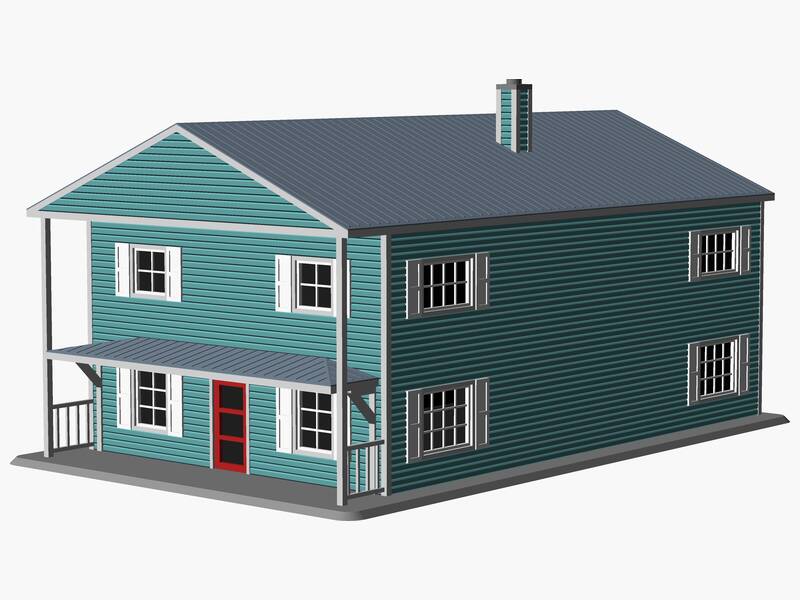

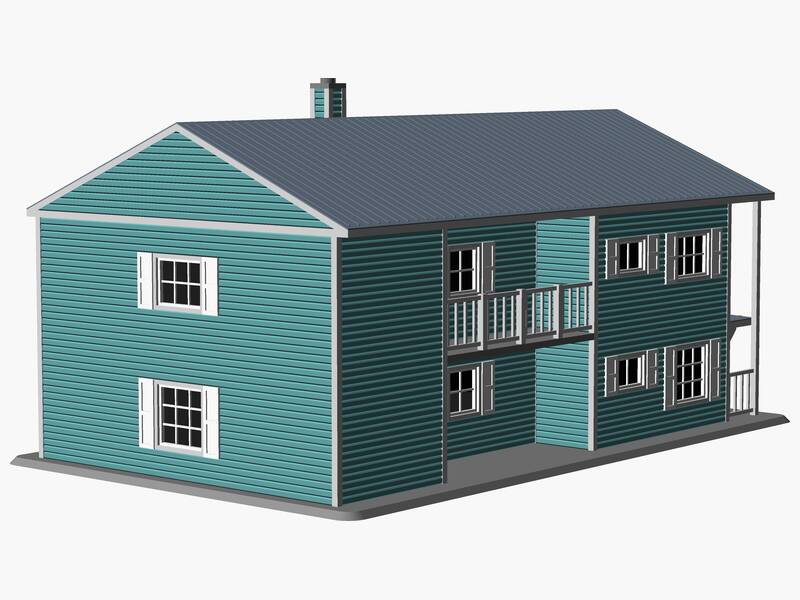

A 1/87 scale model of a multifamily two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 16 windows and 3 exterior doors. Architectural features include covered front porch, balcony with guardrail, support posts and railings, window shutters, chimney with enclosed chase. The assembled model measures approximately 123 × 197 × 101 mm.
Specifications
- Type
- Multifamily two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 16
- Exterior Doors
- 3
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Covered front porch
- balcony with guardrail
- chimney with enclosed chase
- glass-panel door
- support posts and railings
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 122.70 | 196.32 | 100.35 |
| Perimeter #1 | 105.87 | 185.45 | 63.10 |
| Wall #2 | 103.42 | 63.10 | 18.62 |
| Wall #3 | 64.86 | 63.10 | 2.10 |
| Wall #4 | 19.28 | 63.10 | 1.75 |
| Wall #5 | 63.10 | 63.10 | 2.10 |
| Wall #6 | 19.28 | 63.10 | 1.79 |
| Wall #7 | 38.56 | 63.10 | 1.75 |
| Wall #8 | 103.42 | 63.10 | 2.10 |
| Wall #9 | 166.52 | 63.10 | 2.10 |
| Roof #10 | 112.18 | 185.80 | 35.52 |
| Base #11 | 122.70 | 196.32 | 1.75 |
| Railing #12 | 15.78 | 63.10 | 1.75 |
| Railing #13 | 15.78 | 63.10 | 1.75 |
| Balcony #14 | 61.35 | 19.28 | 1.75 |
| Guardrail #15 | 61.31 | 14.02 | 1.75 |
