KIT AH-7ES5RY
Architecture / House
Manual
Multifamily two-story House

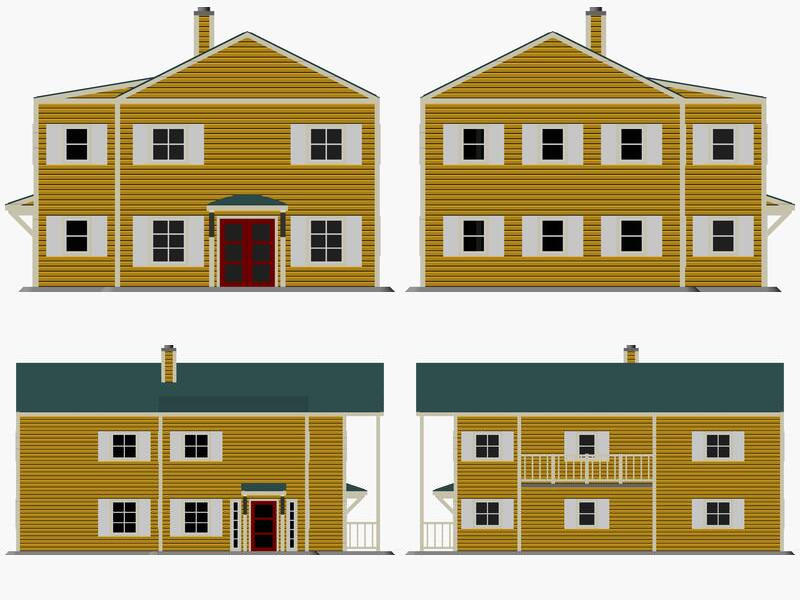

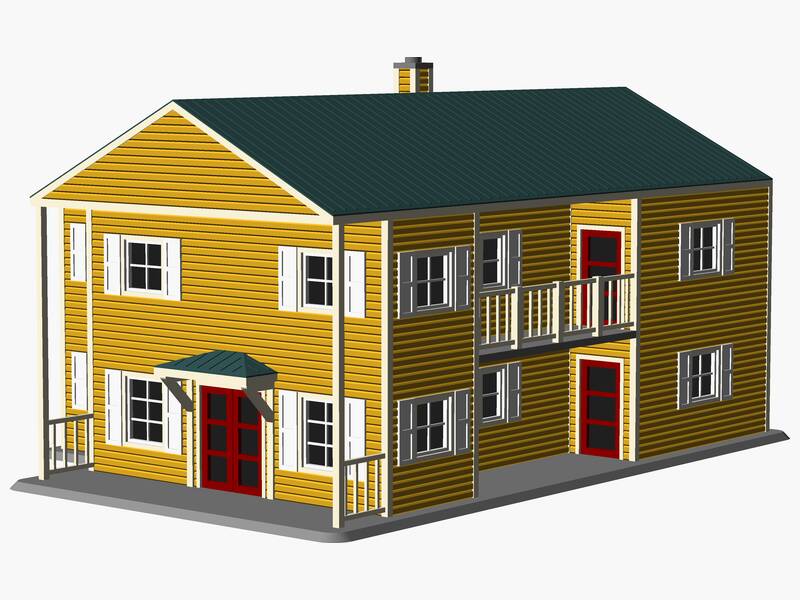

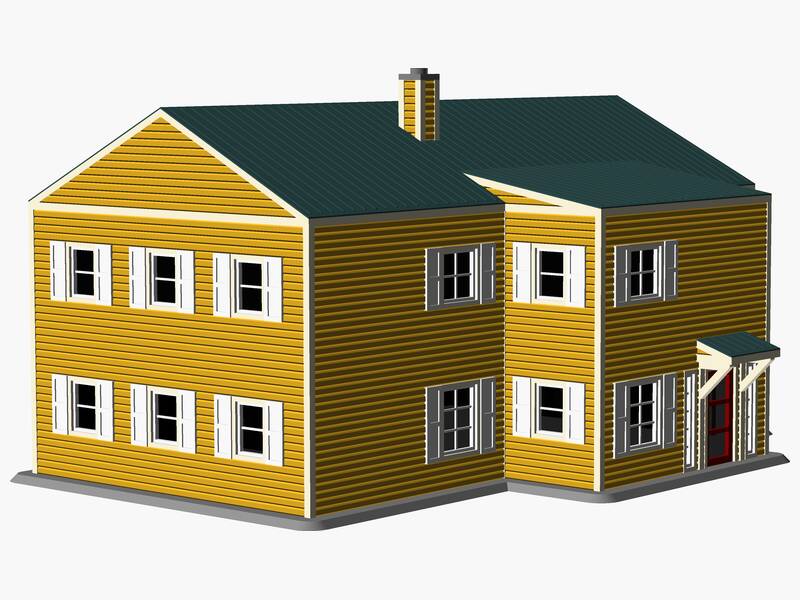

A 1/87 scale model of a multifamily two-story-style house. It features a 6/12 pitch gable roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 26 windows and 4 exterior doors. Architectural features include covered front porch, balcony with guardrail, a side addition, support posts and railings, window shutters, chimney with enclosed chase.
Specifications
- Type
- Multifamily two-story
- Scale
- 1/87
- Wall Panels
- 12
- Windows
- 26
- Exterior Doors
- 4
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Covered front porch
- side addition
- balcony with guardrail
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Perimeter #1 | 129.36 | 164.42 | 63.10 |
| Wall #2 | 89.40 | 63.10 | 11.60 |
| Wall #3 | 29.80 | 63.10 | 2.10 |
| Wall #4 | 19.28 | 63.10 | 1.75 |
| Wall #5 | 63.10 | 63.10 | 2.10 |
| Wall #6 | 19.28 | 63.10 | 1.79 |
| Wall #7 | 59.60 | 63.10 | 2.10 |
| Wall #8 | 89.40 | 63.10 | 2.10 |
| Wall #9 | 66.61 | 63.10 | 2.10 |
| Wall #10 | 28.05 | 63.10 | 2.10 |
| Wall #11 | 68.36 | 63.10 | 11.60 |
| Wall #12 | 28.05 | 63.10 | 2.10 |
| Wall #13 | 17.53 | 63.10 | 1.75 |
| Roof #14 | 119.20 | 171.78 | 33.19 |
| Base #15 | 129.71 | 182.30 | 1.75 |
| Railing #16 | 15.78 | 63.10 | 1.75 |
| Railing #17 | 15.78 | 63.10 | 1.75 |
| Balcony #18 | 61.35 | 19.28 | 1.75 |
| Guardrail #19 | 61.31 | 14.02 | 1.75 |
