Multifamily two-story House

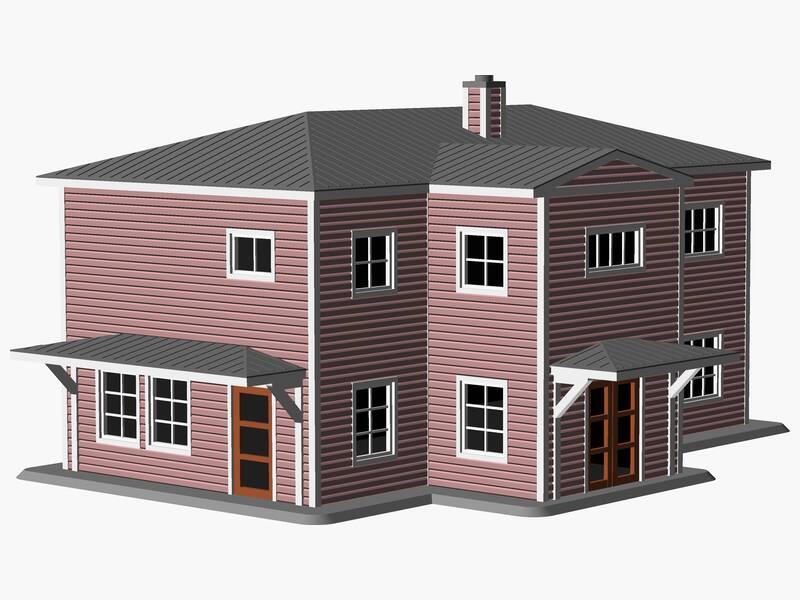

A 1/87 scale model of a multifamily two-story-style house. It features a 4/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 27 windows and 4 exterior doors. Architectural features include balcony with guardrail, a side addition, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 135 × 182 × 89 mm.
Specifications
- Type
- Multifamily two-story
- Scale
- 1/87
- Wall Panels
- 12
- Windows
- 27
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Side addition

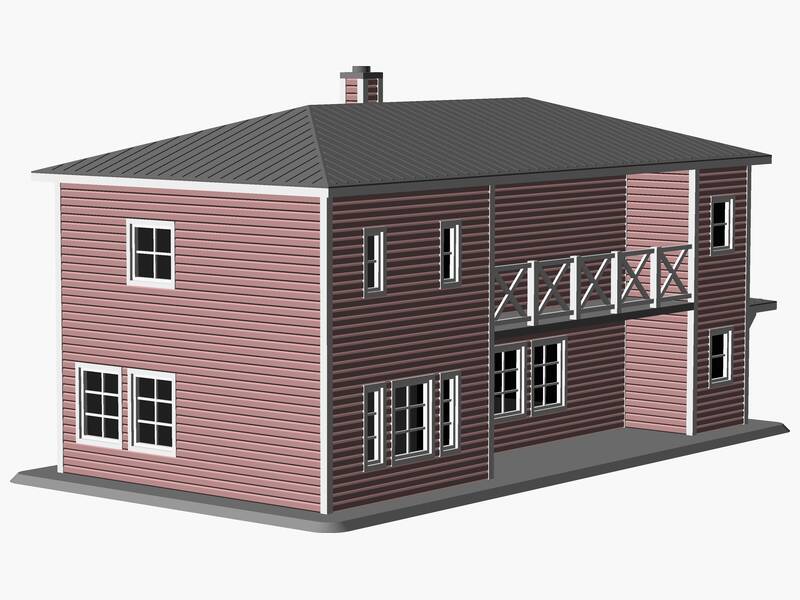

- balcony with guardrail
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 134.27 | 181.60 | 88.66 |
| Perimeter #1 | 125.51 | 172.83 | 63.10 |
| Wall #2 | 75.37 | 63.10 | 18.62 |
| Wall #3 | 22.79 | 63.10 | 1.75 |
| Wall #4 | 19.28 | 63.10 | 1.75 |
| Wall #5 | 78.88 | 63.10 | 1.75 |
| Wall #6 | 19.28 | 63.10 | 1.79 |
| Wall #7 | 52.59 | 63.10 | 1.75 |
| Wall #8 | 75.37 | 63.10 | 1.75 |
| Wall #9 | 71.87 | 63.10 | 1.75 |
| Wall #10 | 31.55 | 63.10 | 1.75 |
| Wall #11 | 47.33 | 63.10 | 18.62 |
| Wall #12 | 31.55 | 63.10 | 1.75 |
| Wall #13 | 35.06 | 63.10 | 1.75 |
| Roof #14 | 112.18 | 163.02 | 23.84 |
| Base #15 | 122.70 | 173.53 | 1.75 |
| Balcony #16 | 77.13 | 19.28 | 1.75 |
| Guardrail #17 | 77.09 | 14.02 | 1.75 |
