KIT AH-0MUFRY

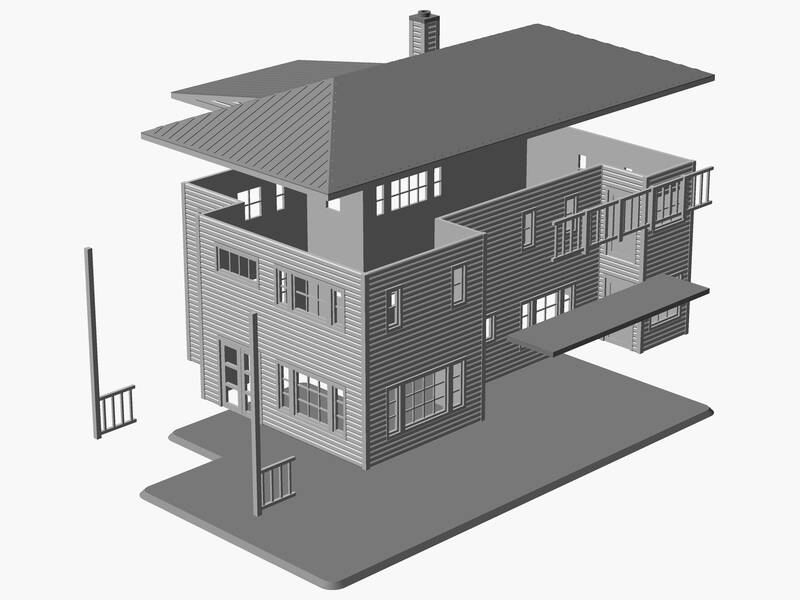

Architecture / House
Manual

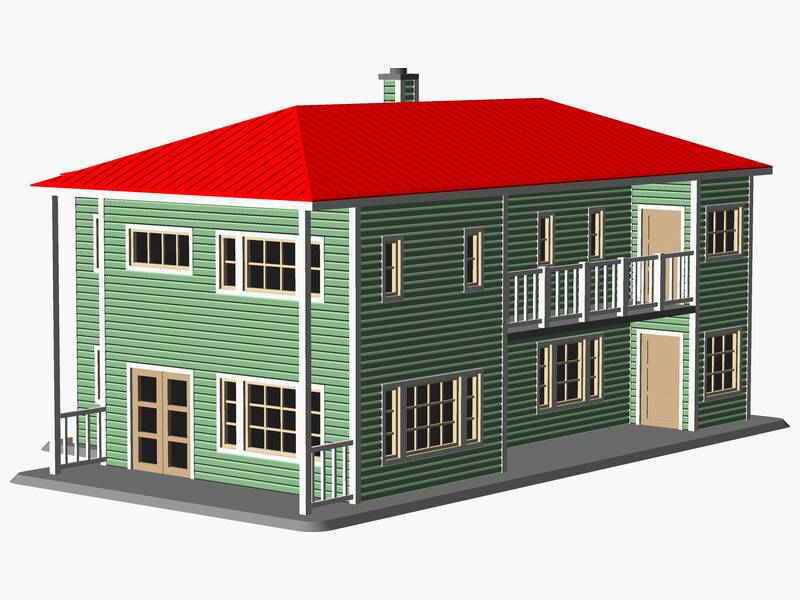

Multifamily two-story House
A 1/87 scale model of a multifamily two-story-style house. It features a 5/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 40 windows and 4 exterior doors. Architectural features include covered front porch, balcony with guardrail, a side addition, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 123 × 188 × 93 mm.
Specifications
- Type
- Multifamily two-story
- Scale
- 1/87
- Wall Panels
- 12
- Windows
- 40
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Covered front porch
- side addition
- balcony with guardrail
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 122.70 | 187.56 | 92.17 |
| Perimeter #1 | 105.17 | 156.01 | 63.10 |
| Wall #2 | 75.37 | 63.10 | 1.79 |
| Wall #3 | 50.83 | 63.10 | 1.75 |
| Wall #4 | 19.28 | 63.10 | 1.75 |
| Wall #5 | 78.88 | 63.10 | 1.75 |
| Wall #6 | 19.28 | 63.10 | 1.79 |
| Wall #7 | 24.54 | 63.10 | 1.75 |
| Wall #8 | 75.37 | 63.10 | 1.75 |
| Wall #9 | 82.39 | 63.10 | 1.75 |
| Wall #10 | 28.05 | 63.10 | 1.75 |
| Wall #11 | 54.34 | 63.10 | 1.79 |
| Wall #12 | 28.05 | 63.10 | 1.75 |
| Wall #13 | 17.53 | 63.10 | 1.75 |
| Roof #14 | 112.18 | 177.04 | 27.34 |
| Base #15 | 122.70 | 187.56 | 1.75 |
| Railing #16 | 15.78 | 63.10 | 1.75 |
| Railing #17 | 15.78 | 63.10 | 1.75 |
| Balcony #18 | 77.13 | 19.28 | 1.75 |
| Guardrail #19 | 77.09 | 14.02 | 1.75 |
