KIT AH-0DS5RY
Architecture / House
Manual
Multifamily two-story House

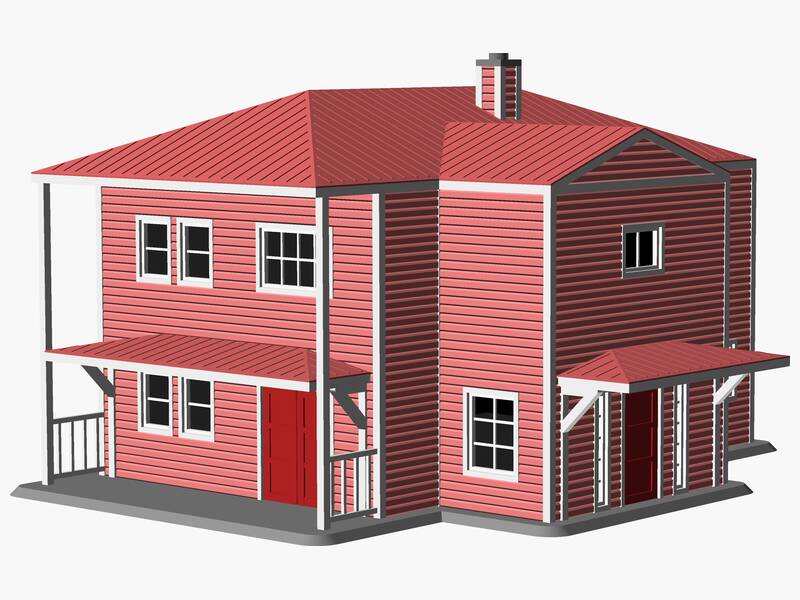

A 1/87 scale model of a multifamily two-story-style house. It features a 5/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 17 windows and 4 exterior doors. Architectural features include covered front porch, balcony with guardrail, a side addition, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 131 × 157 × 92 mm.
Specifications
- Type
- Multifamily two-story
- Scale
- 1/87
- Wall Panels
- 12
- Windows
- 17
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Covered front porch
- side addition
- balcony with guardrail
- chimney with enclosed chase
- double-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 130.76 | 156.01 | 91.14 |
| Perimeter #1 | 125.51 | 144.79 | 63.10 |
| Wall #2 | 78.88 | 63.10 | 18.62 |
| Wall #3 | 26.29 | 63.10 | 1.75 |
| Wall #4 | 19.28 | 63.10 | 1.75 |
| Wall #5 | 47.33 | 63.10 | 1.75 |
| Wall #6 | 19.28 | 63.10 | 1.79 |
| Wall #7 | 52.59 | 63.10 | 1.75 |
| Wall #8 | 78.88 | 63.10 | 1.75 |
| Wall #9 | 50.83 | 63.10 | 1.75 |
| Wall #10 | 28.05 | 63.10 | 1.75 |
| Wall #11 | 57.84 | 63.10 | 18.62 |
| Wall #12 | 28.05 | 63.10 | 1.75 |
| Wall #13 | 17.53 | 63.10 | 1.75 |
| Roof #14 | 108.68 | 145.49 | 26.32 |
| Base #15 | 119.20 | 156.01 | 1.75 |
| Railing #16 | 15.78 | 63.10 | 1.75 |
| Railing #17 | 15.78 | 63.10 | 1.75 |
| Balcony #18 | 45.57 | 19.28 | 1.75 |
| Guardrail #19 | 45.54 | 14.02 | 1.75 |
