KIT AG-2GR5RY
Architecture / House
Manual

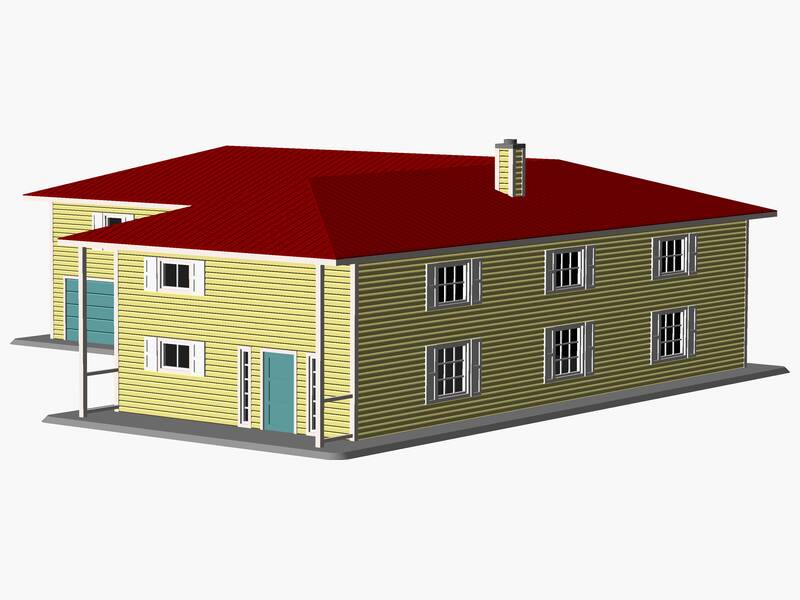

Two-story House
A 1/87 scale model of a two-story-style house. It features a 4/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 21 windows and 4 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, window shutters, chimney with enclosed chase. The assembled model measures approximately 270 × 256 × 85 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 10
- Windows
- 21
- Exterior Doors
- 4
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
- support posts and railings
- window shutters
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 269.94 | 255.92 | 84.28 |
| Perimeter #1 | 246.10 | 221.56 | 52.59 |
| Wall #2 | 92.90 | 52.59 | 2.14 |
| Wall #3 | 126.21 | 52.59 | 2.10 |
| Wall #4 | 150.75 | 52.59 | 2.14 |
| Wall #5 | 92.90 | 52.59 | 2.10 |
| Wall #6 | 54.34 | 52.59 | 1.75 |
| Wall #7 | 12.27 | 52.59 | 1.75 |
| Wall #8 | 141.98 | 52.59 | 2.14 |
| Wall #9 | 12.27 | 52.59 | 1.75 |
| Wall #10 | 47.33 | 52.59 | 2.10 |
| Wall #11 | 219.11 | 52.59 | 2.10 |
| Roof #12 | 259.43 | 245.40 | 29.97 |
| Base #13 | 269.94 | 255.92 | 1.75 |
| Railing #14 | 15.78 | 52.59 | 1.75 |
| Railing #15 | 15.78 | 52.59 | 1.75 |
