KIT AG-2CS5RY
Architecture / House
Manual

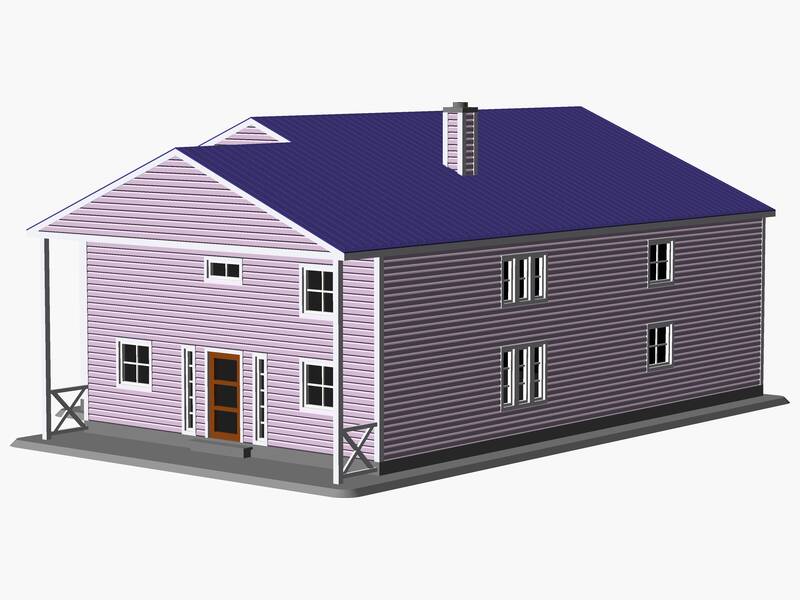

Two-story House
A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 28 windows and a single exterior door. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 158 × 214 × 95 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 6
- Windows
- 28
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Covered front porch
- chimney with enclosed chase
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 157.76 | 213.85 | 94.36 |
| Perimeter #1 | 140.23 | 189.28 | 56.09 |
| Wall #2 | 106.93 | 56.09 | 5.26 |
| Wall #3 | 28.05 | 56.09 | 1.75 |
| Wall #4 | 31.55 | 56.09 | 1.75 |
| Wall #5 | 156.01 | 56.09 | 1.75 |
| Wall #6 | 138.48 | 56.09 | 1.75 |
| Wall #7 | 184.05 | 56.09 | 1.75 |
| Roof #8 | 147.24 | 203.33 | 36.55 |
| Base #9 | 157.76 | 213.85 | 1.75 |
| Railing #10 | 15.78 | 56.09 | 1.75 |
| Railing #11 | 15.78 | 56.09 | 1.75 |
