KIT AG-06S5RY
Architecture / House
Manual

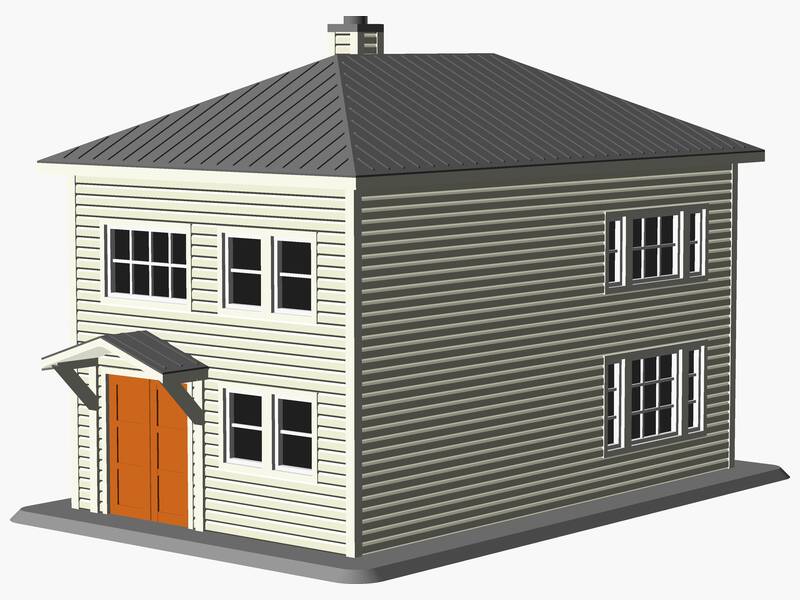

Two-story House
A 1/87 scale model of a two-story-style house. It features a 6/12 pitch hip roof. Exterior materials include vinyl or wood siding with a standing seam metal roof system. The structure includes 24 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 81 × 124 × 84 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 24
- Exterior Doors
- 1
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Vinyl or wood exterior siding
Features
- Chimney with enclosed chase
- double-panel door

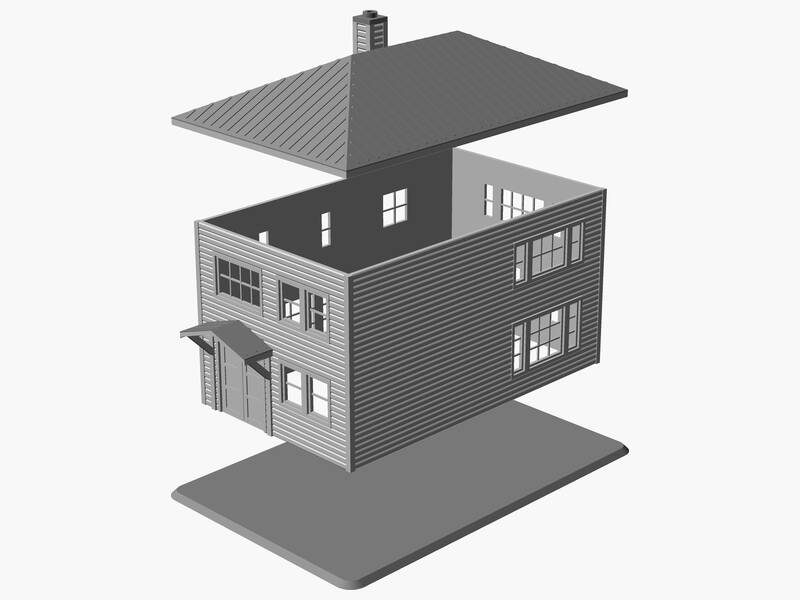

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 80.63 | 123.75 | 83.99 |
| Perimeter #1 | 63.10 | 114.99 | 56.09 |
| Wall #2 | 61.35 | 56.09 | 11.60 |
| Wall #3 | 103.42 | 56.09 | 1.75 |
| Wall #4 | 61.35 | 56.09 | 1.75 |
| Wall #5 | 103.42 | 56.09 | 1.75 |
| Roof #6 | 70.11 | 112.18 | 26.18 |
| Base #7 | 80.63 | 122.70 | 1.75 |
