KIT AF-E5TFRY
Architecture / House
Manual

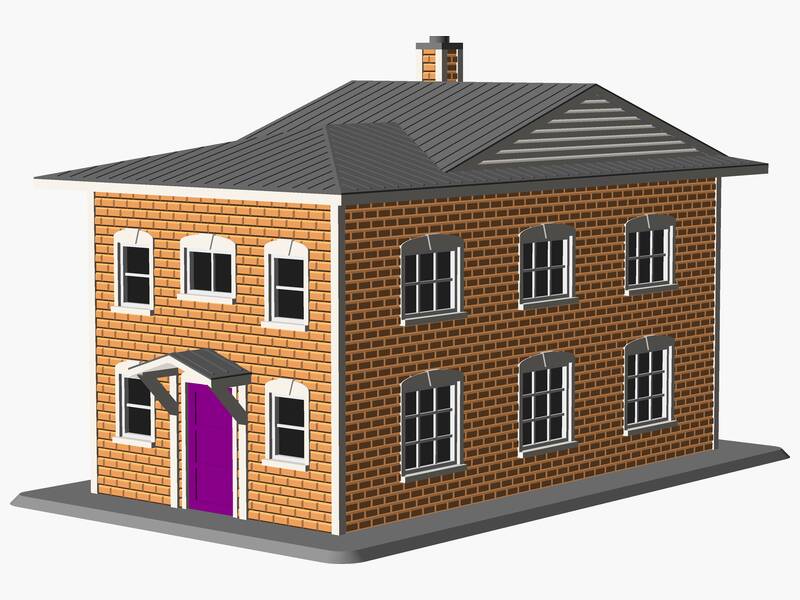

Two-story House
A 1/87 scale model of a two-story-style house. It features a 4/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 18 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 88 × 144 × 89 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 18
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 87.64 | 143.74 | 88.13 |
| Perimeter #1 | 64.86 | 129.89 | 57.84 |
| Wall #2 | 61.35 | 57.84 | 11.60 |
| Wall #3 | 117.44 | 57.84 | 2.63 |
| Wall #4 | 61.35 | 57.84 | 2.63 |
| Wall #5 | 117.44 | 57.84 | 2.63 |
| Roof #6 | 77.13 | 133.22 | 28.57 |
| Base #7 | 87.64 | 143.74 | 1.75 |
