KIT AF-CQLDRY
Architecture / House
Manual

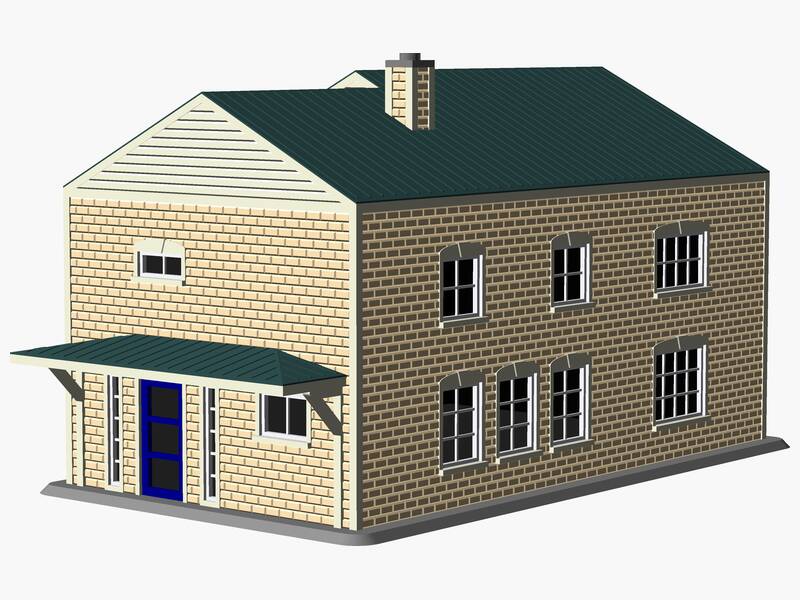

Two-story House

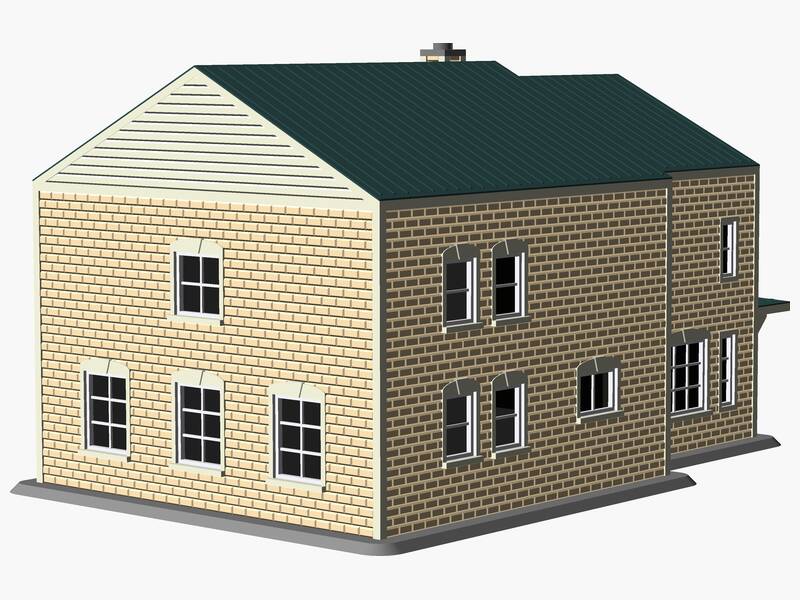

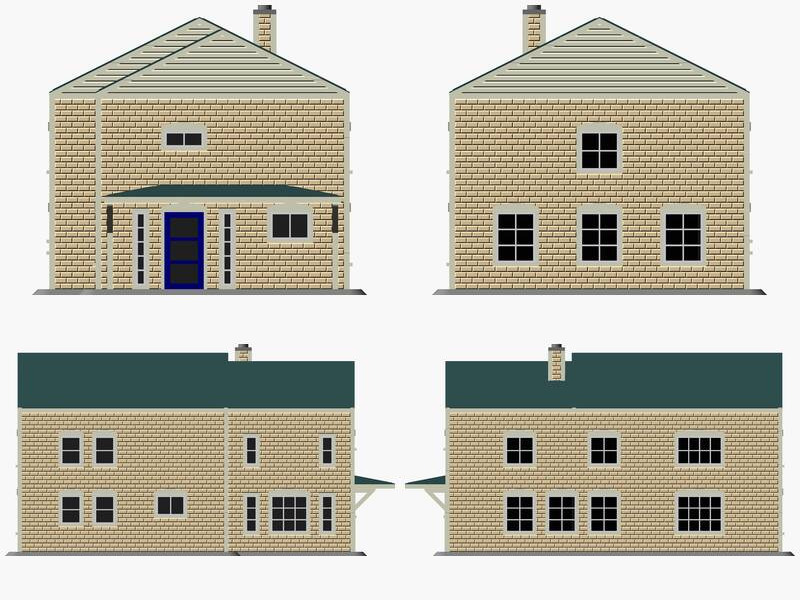

A 1/87 scale model of a two-story-style house. It features a 6/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 25 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 102 × 163 × 89 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 6
- Windows
- 25
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
- glass-panel door

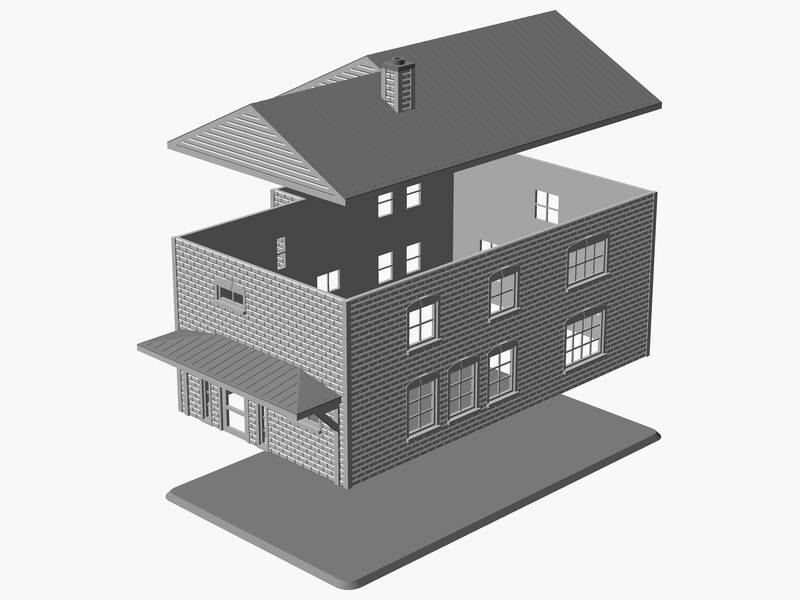

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 101.67 | 162.32 | 88.08 |
| Perimeter #1 | 92.90 | 157.93 | 57.84 |
| Wall #2 | 75.37 | 57.84 | 18.62 |
| Wall #3 | 52.59 | 57.84 | 2.63 |
| Wall #4 | 14.02 | 57.84 | 1.75 |
| Wall #5 | 85.89 | 57.84 | 2.63 |
| Wall #6 | 89.40 | 57.84 | 2.63 |
| Wall #7 | 138.48 | 57.84 | 2.63 |
| Roof #8 | 91.15 | 140.23 | 28.51 |
| Base #9 | 101.67 | 150.75 | 1.75 |
