KIT AF-BRR5RY
Architecture / House
Manual

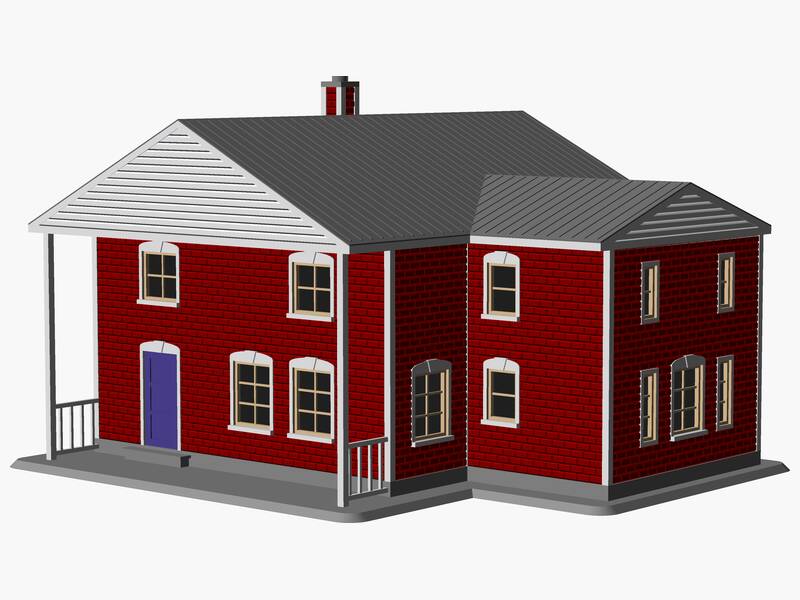

Two-story House
A 1/87 scale model of a two-story-style house. It features a 6/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 27 windows and a single exterior door. Architectural features include covered front porch, a side addition, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 153 × 141 × 96 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 27
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Covered front porch
- side addition
- chimney with enclosed chase
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 152.50 | 140.23 | 95.67 |
| Perimeter #1 | 140.23 | 116.53 | 56.09 |
| Wall #2 | 96.41 | 56.09 | 5.26 |
| Wall #3 | 27.52 | 56.09 | 2.63 |
| Wall #4 | 40.32 | 56.09 | 2.63 |
| Wall #5 | 61.88 | 56.09 | 2.63 |
| Wall #6 | 40.32 | 56.09 | 2.63 |
| Wall #7 | 21.03 | 56.09 | 2.63 |
| Wall #8 | 96.41 | 56.09 | 2.63 |
| Wall #9 | 110.43 | 56.09 | 2.63 |
| Roof #10 | 141.98 | 129.71 | 37.86 |
| Base #11 | 152.50 | 140.23 | 1.75 |
| Railing #12 | 15.78 | 56.09 | 1.75 |
| Railing #13 | 15.78 | 56.09 | 1.75 |
