KIT AF-B6U5RY
Architecture / House
Manual
Two-story House
A 1/87 scale model of a two-story-style house. It features a 6/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 39 windows and 5 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 220 × 165 × 93 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 39
- Exterior Doors
- 5
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
- support posts and railings

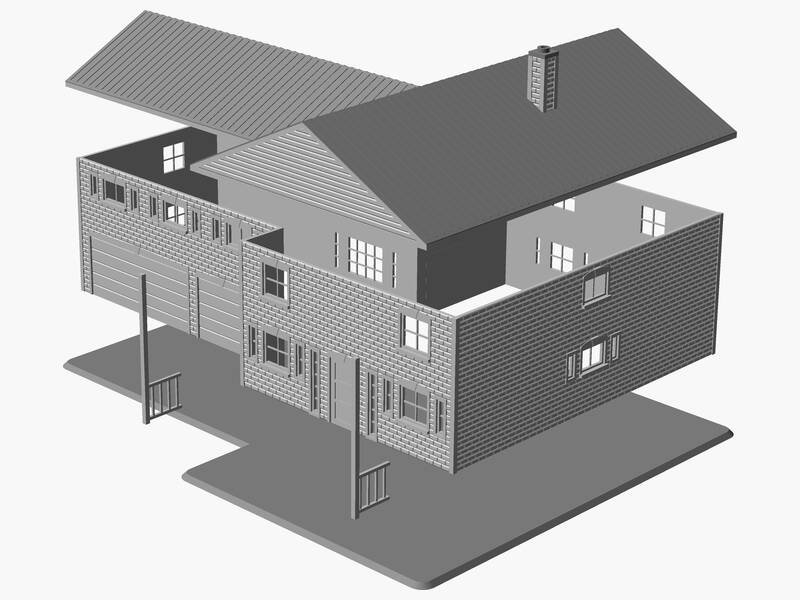

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 219.11 | 164.77 | 92.17 |
| Perimeter #1 | 206.84 | 138.48 | 52.59 |
| Wall #2 | 96.41 | 52.59 | 2.66 |
| Wall #3 | 17.53 | 52.59 | 1.75 |
| Wall #4 | 106.93 | 52.59 | 2.66 |
| Wall #5 | 68.36 | 52.59 | 2.66 |
| Wall #6 | 106.93 | 52.59 | 2.63 |
| Wall #7 | 49.08 | 52.59 | 2.14 |
| Wall #8 | 96.41 | 52.59 | 2.63 |
| Wall #9 | 134.97 | 52.59 | 2.63 |
| Roof #10 | 208.59 | 154.25 | 37.86 |
| Base #11 | 219.11 | 164.77 | 1.75 |
| Railing #12 | 15.78 | 52.59 | 1.75 |
| Railing #13 | 15.78 | 52.59 | 1.75 |
