KIT AF-AYT5RY
Architecture / House
Manual
Two-story House

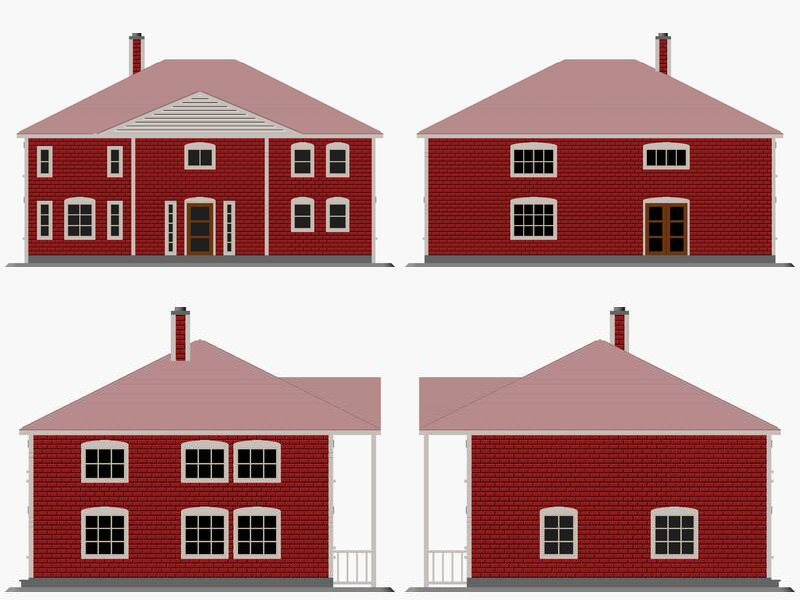

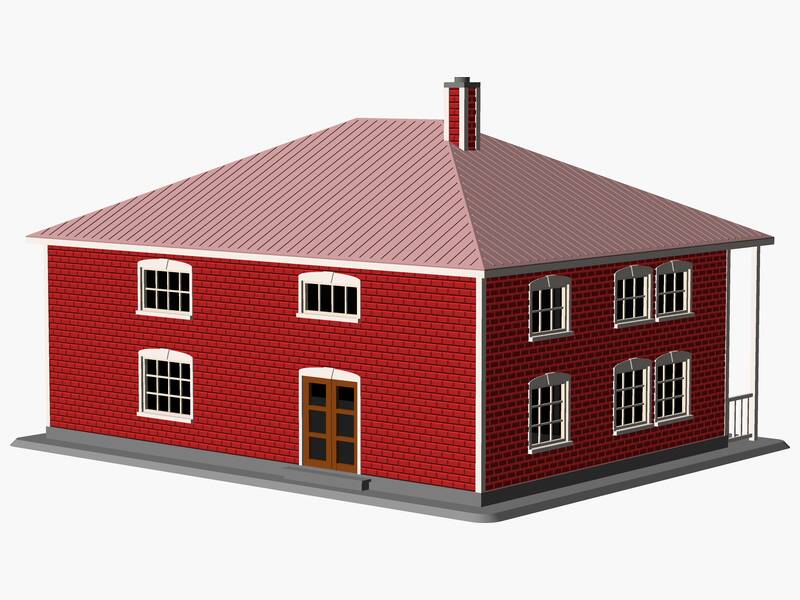

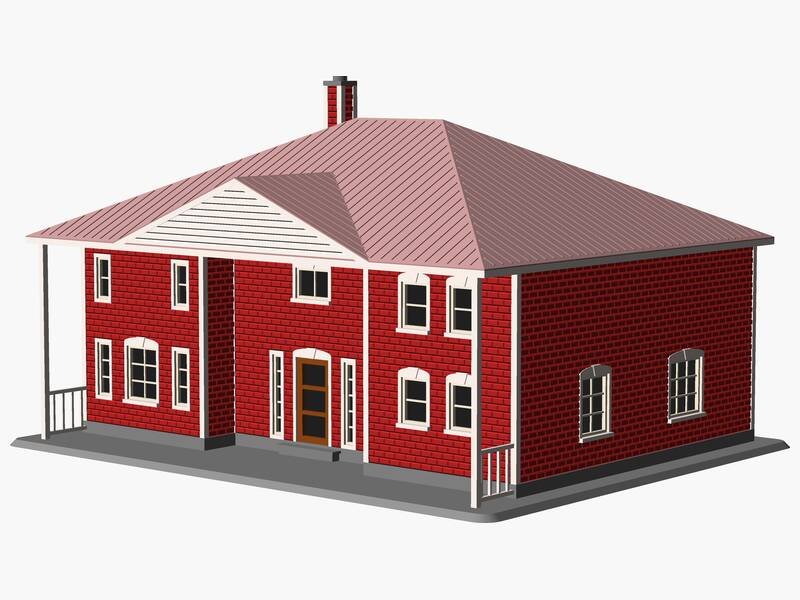

A 1/87 scale model of a two-story-style house. It features a 6/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 23 windows and 2 exterior doors. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 176 × 144 × 106 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 23
- Exterior Doors
- 2
- Roof Type
- Hip
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Covered front porch
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings

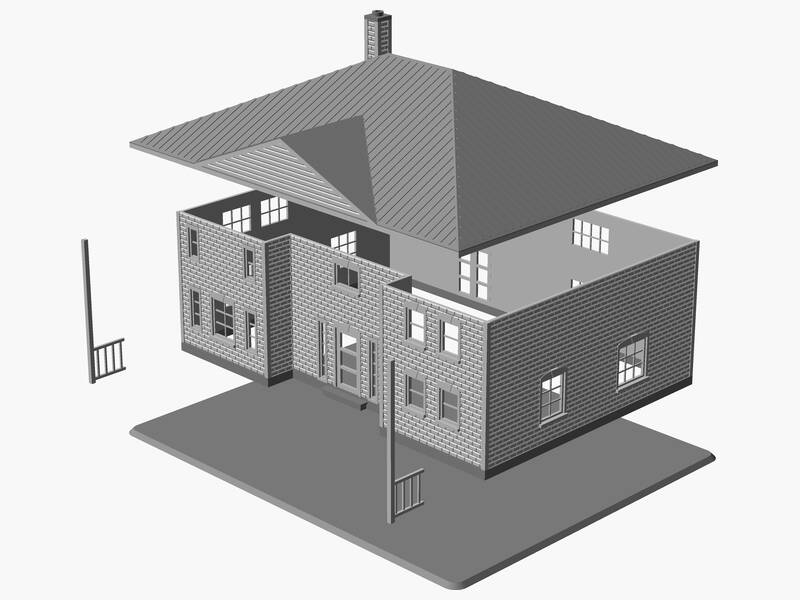

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 175.29 | 143.74 | 105.02 |
| Perimeter #1 | 159.51 | 116.53 | 56.09 |
| Wall #2 | 48.03 | 56.09 | 2.63 |
| Wall #3 | 12.27 | 56.09 | 1.75 |
| Wall #4 | 59.95 | 56.09 | 5.26 |
| Wall #5 | 12.27 | 56.09 | 1.75 |
| Wall #6 | 48.03 | 56.09 | 2.63 |
| Wall #7 | 110.43 | 56.09 | 2.63 |
| Wall #8 | 156.01 | 56.09 | 5.26 |
| Wall #9 | 110.43 | 56.09 | 2.63 |
| Roof #10 | 164.77 | 133.22 | 47.21 |
| Base #11 | 175.29 | 143.74 | 1.75 |
| Railing #12 | 15.78 | 56.09 | 1.75 |
| Railing #13 | 15.78 | 56.09 | 1.75 |
