Architecture / House
Build Guide ·
Two-story House
A 1/87 scale model of a two-story-style house. It features a 4/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 18 windows and 2 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 116 × 146 × 86 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 18
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Chimney with enclosed chase
- glass-panel door

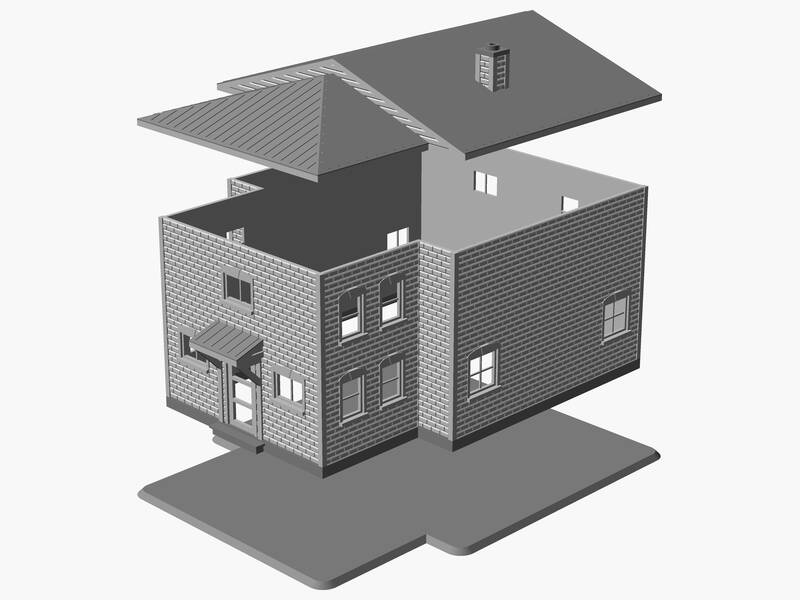

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 115.69 | 145.84 | 85.15 |
| Perimeter #1 | 99.91 | 145.84 | 61.35 |
| Wall #2 | 68.36 | 61.35 | 11.60 |
| Wall #3 | 38.56 | 61.35 | 2.63 |
| Wall #4 | 14.02 | 61.35 | 1.75 |
| Wall #5 | 85.89 | 61.35 | 2.63 |
| Wall #6 | 96.41 | 61.35 | 11.60 |
| Wall #7 | 85.89 | 61.35 | 2.63 |
| Wall #8 | 14.02 | 61.35 | 1.75 |
| Wall #9 | 38.56 | 61.35 | 2.63 |
| Roof #10 | 105.17 | 129.71 | 22.09 |
| Base #11 | 115.69 | 140.23 | 1.75 |
