KIT AF-59TFRY
Architecture / House
Manual

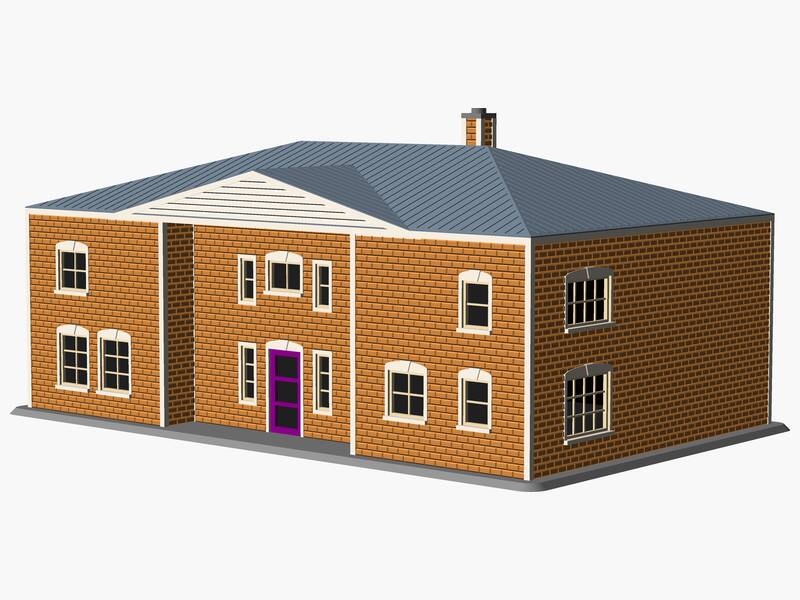

Two-story House

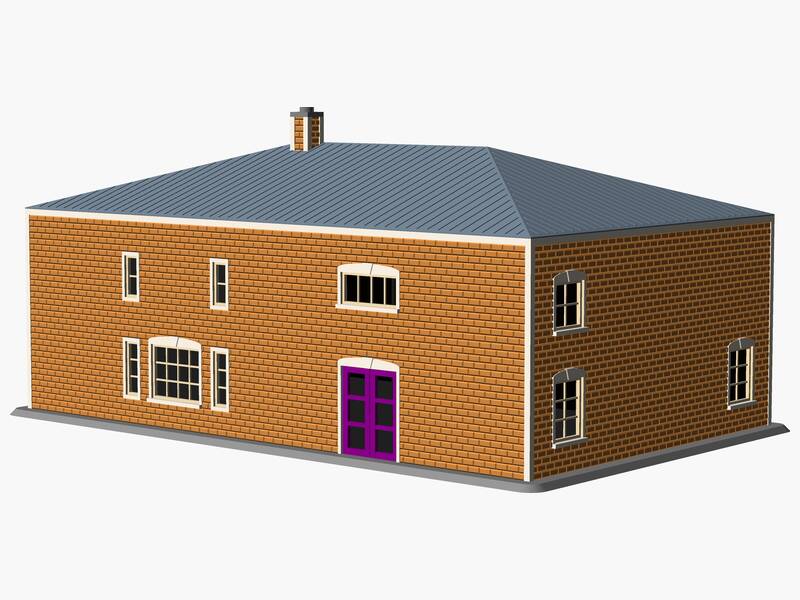

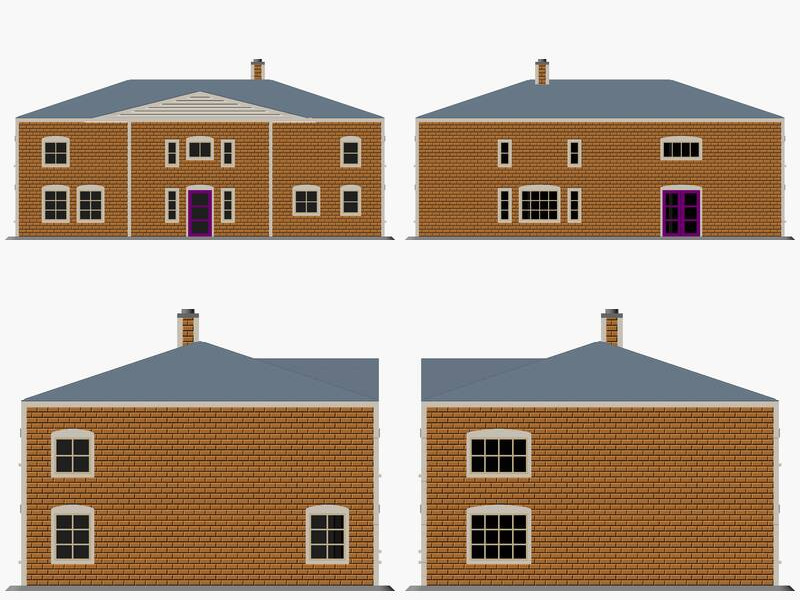

A 1/87 scale model of a two-story-style house. It features a 4/12 pitch hip roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 22 windows and 2 exterior doors. Architectural features include chimney with enclosed chase. The assembled model measures approximately 197 × 127 × 92 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 22
- Exterior Doors
- 2
- Roof Type
- Hip
- Roof Pitch
- 4/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
- double-panel door
- glass-panel door

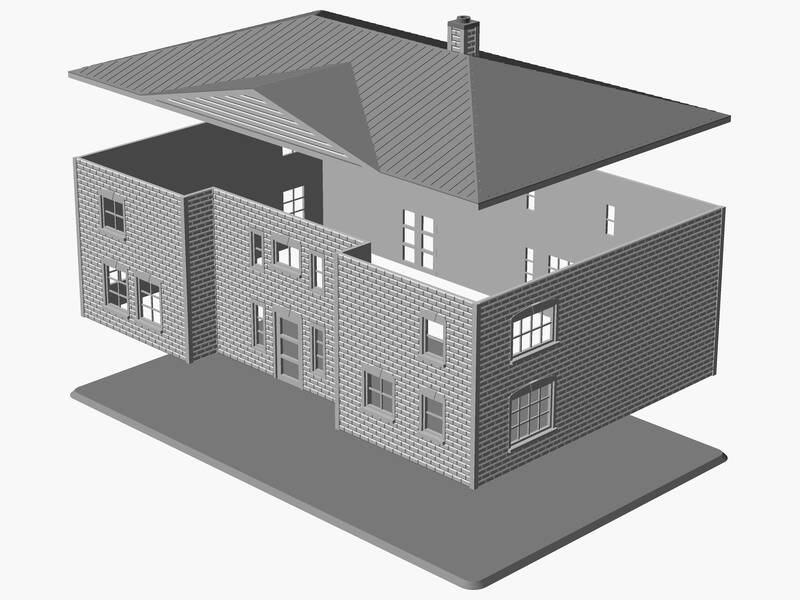

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 196.32 | 126.21 | 91.29 |
| Perimeter #1 | 187.56 | 117.44 | 57.84 |
| Wall #2 | 56.44 | 57.84 | 2.63 |
| Wall #3 | 12.27 | 57.84 | 1.75 |
| Wall #4 | 71.17 | 57.84 | 2.66 |
| Wall #5 | 12.27 | 57.84 | 1.75 |
| Wall #6 | 56.44 | 57.84 | 2.63 |
| Wall #7 | 113.94 | 57.84 | 2.63 |
| Wall #8 | 184.05 | 57.84 | 2.66 |
| Wall #9 | 113.94 | 57.84 | 2.63 |
| Roof #10 | 185.80 | 115.69 | 31.73 |
| Base #11 | 196.32 | 126.21 | 1.75 |
