KIT AF-3VT5RY
Kit of the Month
Architecture / House
Manual

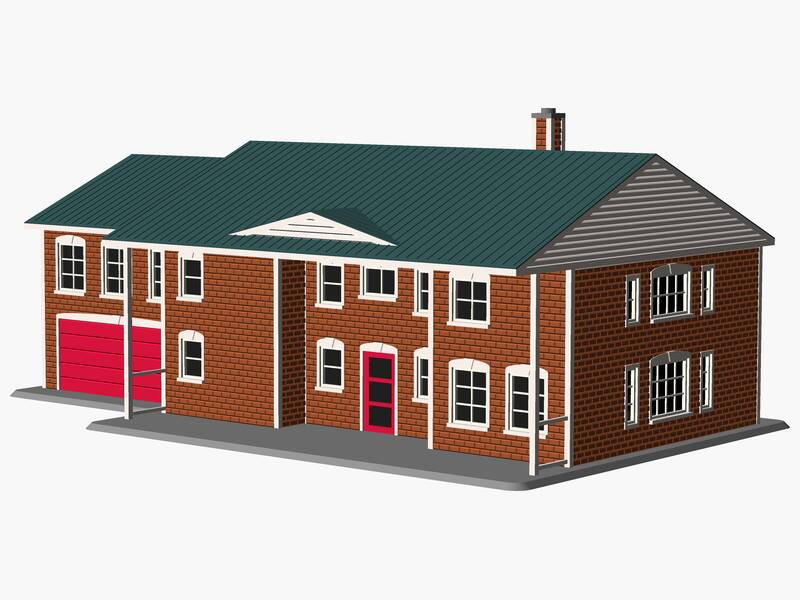

A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 28 windows and 3 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 230 × 141 × 95 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 28
- Exterior Doors
- 3
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- overhead garage door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 229.63 | 140.23 | 94.94 |
| Perimeter #1 | 220.86 | 99.91 | 52.59 |
| Wall #2 | 45.93 | 52.59 | 2.63 |
| Wall #3 | 12.27 | 52.59 | 1.75 |
| Wall #4 | 57.14 | 52.59 | 2.66 |
| Wall #5 | 12.27 | 52.59 | 1.75 |
| Wall #6 | 45.93 | 52.59 | 2.63 |
| Wall #7 | 14.02 | 52.59 | 1.75 |
| Wall #8 | 68.36 | 52.59 | 2.66 |
| Wall #9 | 82.39 | 52.59 | 2.63 |
| Wall #10 | 68.36 | 52.59 | 2.63 |
| Wall #11 | 12.27 | 52.59 | 1.75 |
| Wall #12 | 22.79 | 52.59 | 2.66 |
| Wall #13 | 12.27 | 52.59 | 1.75 |
| Wall #14 | 126.21 | 52.59 | 2.63 |
| Wall #15 | 96.41 | 52.59 | 2.63 |
| Roof #16 | 219.11 | 129.71 | 40.64 |
| Base #17 | 229.63 | 140.23 | 1.75 |
| Railing #18 | 15.78 | 52.59 | 1.75 |
| Railing #19 | 15.78 | 52.59 | 1.75 |
