KIT AF-2GTFRY
Featured
Architecture / House
Manual

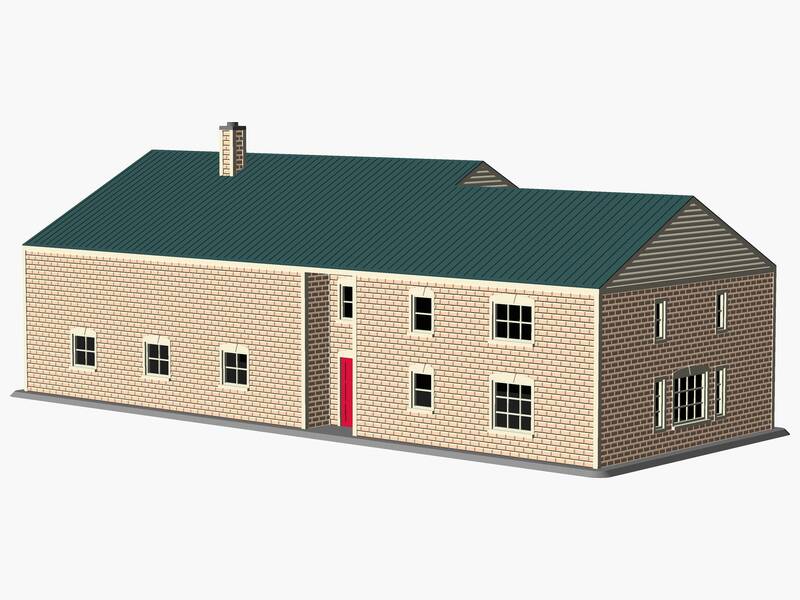

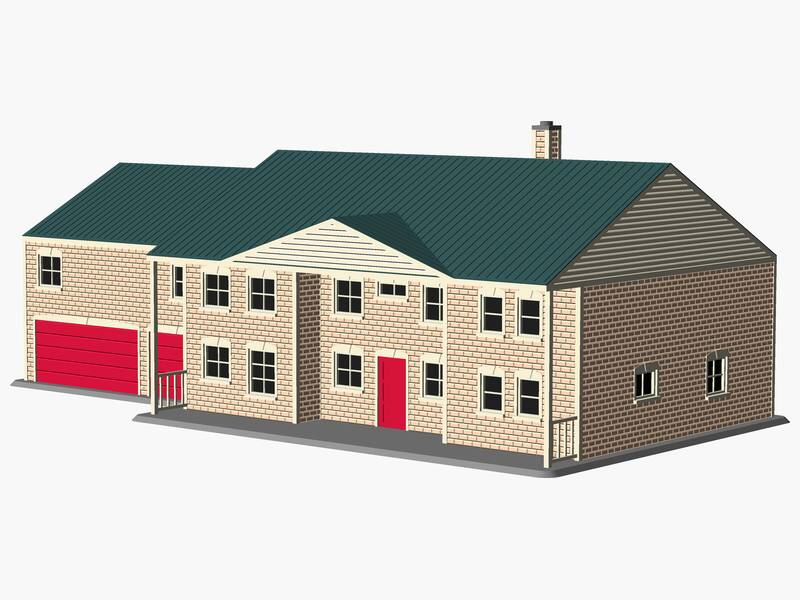

A 1/87 scale model of a two-story-style house. It features a 6/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 30 windows and 4 exterior doors. Architectural features include covered front porch, an overhead garage door, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 272 × 144 × 102 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 14
- Windows
- 30
- Exterior Doors
- 4
- Roof Type
- Gable
- Roof Pitch
- 6/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- overhead garage door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 271.70 | 143.74 | 101.51 |
| Perimeter #1 | 262.93 | 117.44 | 52.59 |
| Wall #2 | 50.13 | 52.59 | 2.63 |
| Wall #3 | 12.27 | 52.59 | 1.75 |
| Wall #4 | 62.75 | 52.59 | 2.66 |
| Wall #5 | 12.27 | 52.59 | 1.75 |
| Wall #6 | 50.13 | 52.59 | 2.63 |
| Wall #7 | 14.02 | 52.59 | 1.75 |
| Wall #8 | 96.41 | 52.59 | 2.66 |
| Wall #9 | 99.91 | 52.59 | 2.63 |
| Wall #10 | 96.41 | 52.59 | 2.63 |
| Wall #11 | 12.27 | 52.59 | 1.75 |
| Wall #12 | 22.79 | 52.59 | 2.66 |
| Wall #13 | 12.27 | 52.59 | 1.75 |
| Wall #14 | 140.23 | 52.59 | 2.63 |
| Wall #15 | 113.94 | 52.59 | 2.63 |
| Roof #16 | 261.18 | 133.22 | 47.21 |
| Base #17 | 271.70 | 143.74 | 1.75 |
| Railing #18 | 15.78 | 52.59 | 1.75 |
| Railing #19 | 15.78 | 52.59 | 1.75 |
