KIT AF-05T5RY
Architecture / House
Manual

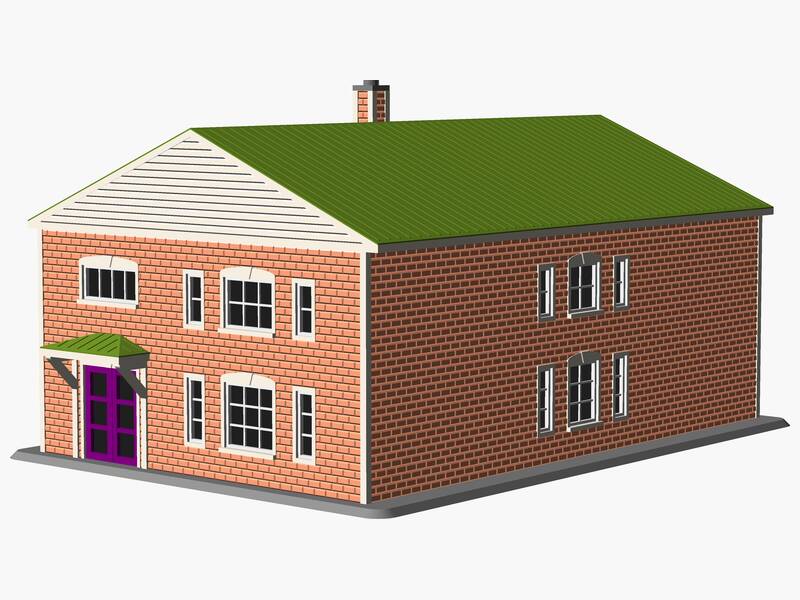

Two-story House
A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 22 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 127 × 180 × 95 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 22
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
Features
- Chimney with enclosed chase
- double-panel door
- glass-panel door

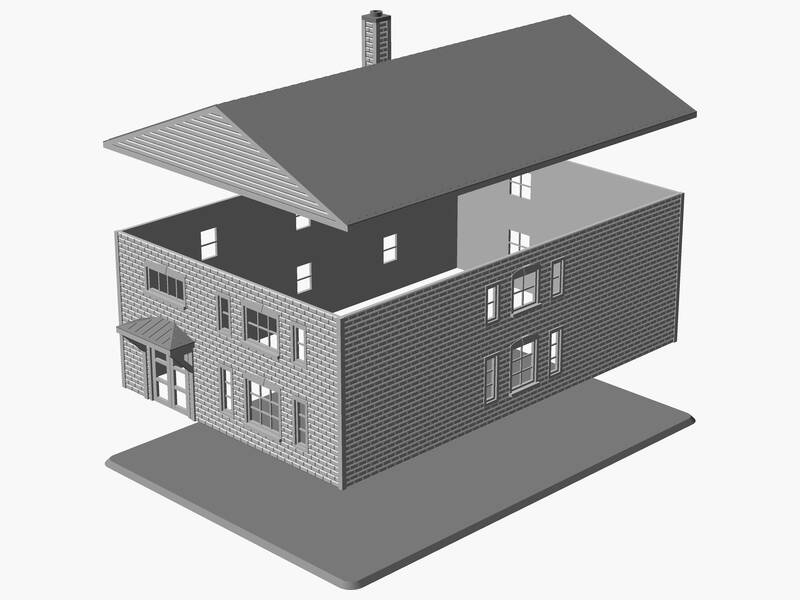

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 126.21 | 179.84 | 94.36 |
| Perimeter #1 | 110.43 | 175.46 | 56.09 |
| Wall #2 | 106.93 | 56.09 | 11.60 |
| Wall #3 | 163.02 | 56.09 | 2.63 |
| Wall #4 | 106.93 | 56.09 | 2.63 |
| Wall #5 | 163.02 | 56.09 | 2.63 |
| Roof #6 | 115.69 | 164.77 | 36.55 |
| Base #7 | 126.21 | 175.29 | 1.75 |
