KIT AF-00T5RY
Architecture / House
Manual

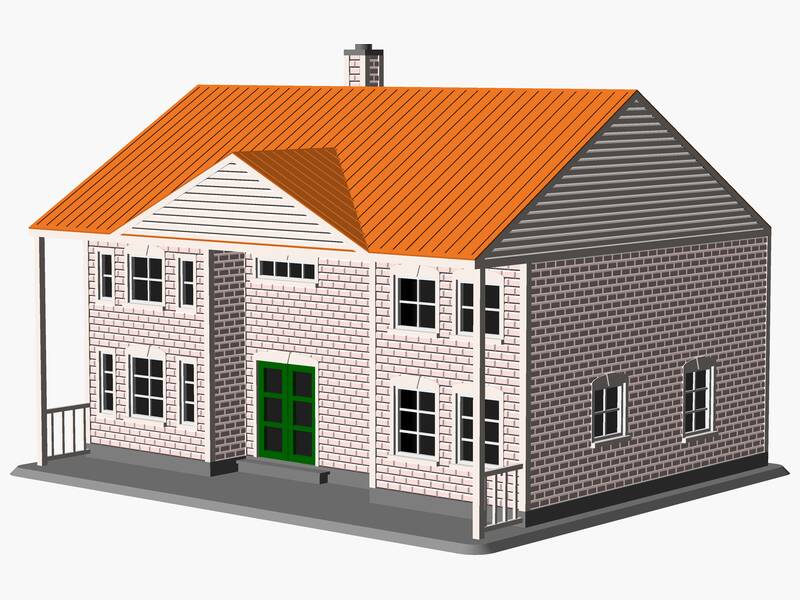

Two-story House
A 1/87 scale model of a two-story-style house. It features a 7/12 pitch gable roof. Exterior materials include brick veneer siding with a standing seam metal roof system. The structure includes 21 windows and 2 exterior doors. Architectural features include covered front porch, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 148 × 127 × 104.00 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 21
- Exterior Doors
- 2
- Roof Type
- Gable
- Roof Pitch
- 7/12
- Roof Material
- Standing seam metal roof system
- Siding
- Brick veneer exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Covered front porch
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings
| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 147.24 | 126.21 | 104.00 |
| Perimeter #1 | 138.48 | 102.51 | 56.09 |
| Wall #2 | 41.72 | 56.09 | 2.63 |
| Wall #3 | 12.27 | 56.09 | 1.75 |
| Wall #4 | 51.53 | 56.09 | 5.26 |
| Wall #5 | 12.27 | 56.09 | 1.75 |
| Wall #6 | 41.72 | 56.09 | 2.63 |
| Wall #7 | 96.41 | 56.09 | 2.63 |
| Wall #8 | 134.97 | 56.09 | 5.26 |
| Wall #9 | 96.41 | 56.09 | 2.63 |
| Roof #10 | 136.72 | 115.69 | 46.19 |
| Base #11 | 147.24 | 126.21 | 1.75 |
| Railing #12 | 15.78 | 56.09 | 1.75 |
| Railing #13 | 15.78 | 56.09 | 1.75 |
