Two-story House

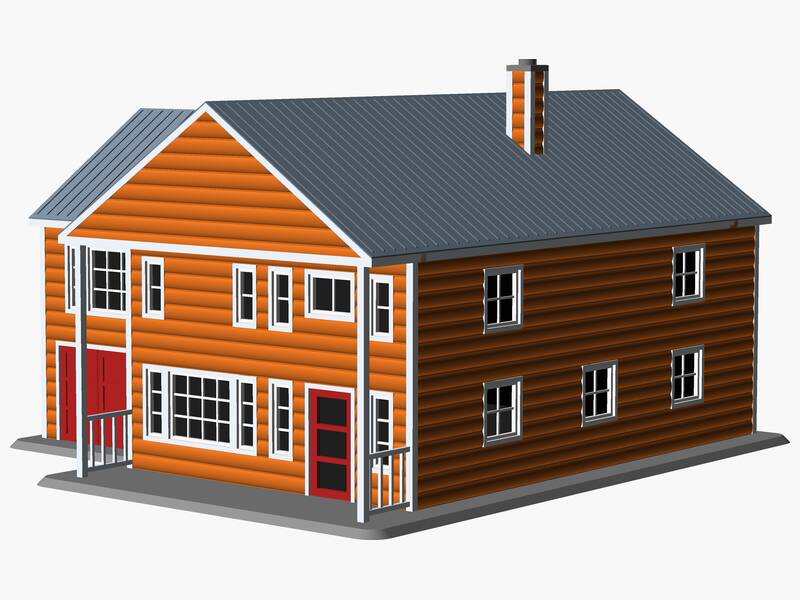

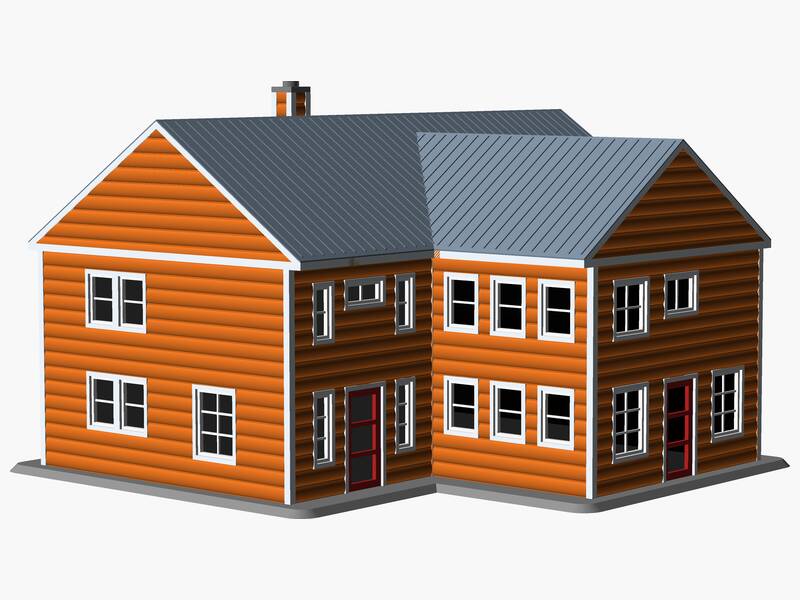

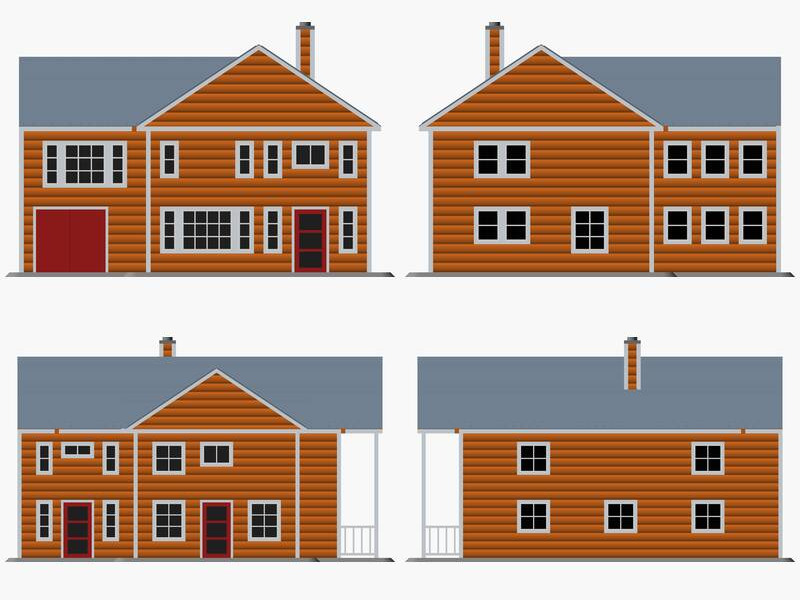

A 1/87 scale model of a two-story-style house. It features a 8/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 38 windows and 4 exterior doors. Architectural features include covered front porch, an attached garage, support posts and railings, chimney with enclosed chase. The assembled model measures approximately 146 × 165 × 96 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 8
- Windows
- 38
- Exterior Doors
- 4
- Roof Type
- Gable
- Roof Pitch
- 8/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
Features
- Covered front porch
- attached garage
- chimney with enclosed chase
- double-panel door
- glass-panel door
- support posts and railings

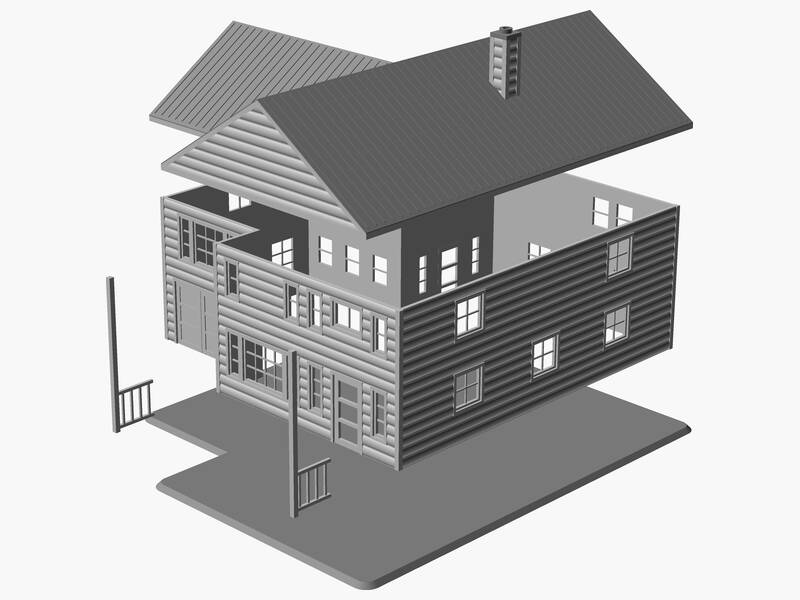

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 145.49 | 164.77 | 95.09 |
| Perimeter #1 | 131.47 | 136.72 | 52.59 |
| Wall #2 | 82.39 | 52.59 | 1.79 |
| Wall #3 | 17.53 | 52.59 | 1.75 |
| Wall #4 | 47.33 | 52.59 | 1.79 |
| Wall #5 | 68.36 | 52.59 | 1.79 |
| Wall #6 | 47.33 | 52.59 | 1.75 |
| Wall #7 | 49.08 | 52.59 | 1.79 |
| Wall #8 | 82.39 | 52.59 | 1.75 |
| Wall #9 | 134.97 | 52.59 | 1.75 |
| Roof #10 | 134.97 | 154.25 | 40.78 |
| Base #11 | 145.49 | 164.77 | 1.75 |
| Railing #12 | 15.78 | 52.59 | 1.75 |
| Railing #13 | 15.78 | 52.59 | 1.75 |
