KIT AE-ARSFRY
Architecture / House
Manual

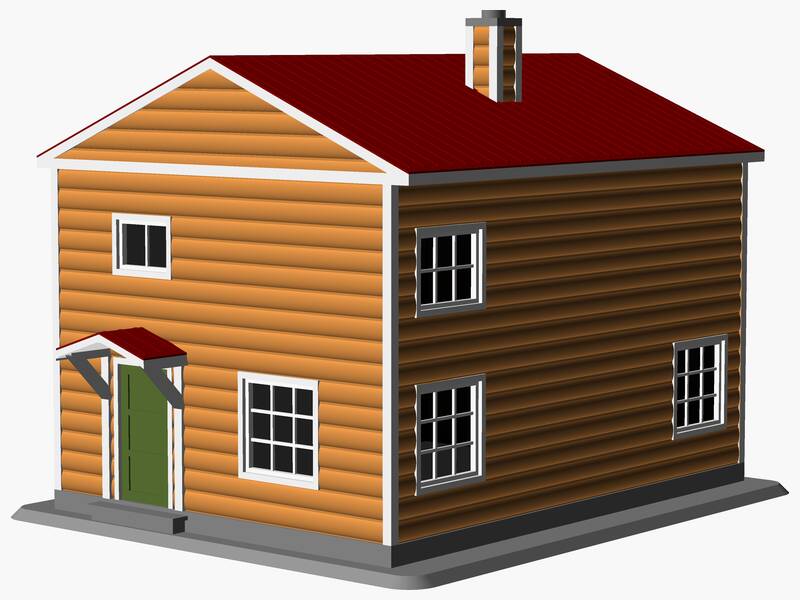

Two-story House
A 1/87 scale model of a two-story-style house. It features a 5/12 pitch gable roof. Exterior materials include engineered log siding with a standing seam metal roof system. The structure includes 14 windows and a single exterior door. Architectural features include chimney with enclosed chase. The assembled model measures approximately 95 × 117 × 89 mm.
Specifications
- Type
- Two-story
- Scale
- 1/87
- Wall Panels
- 4
- Windows
- 14
- Exterior Doors
- 1
- Roof Type
- Gable
- Roof Pitch
- 5/12
- Roof Material
- Standing seam metal roof system
- Siding
- Engineered log exterior siding
- Foundation
- Crawl space or basement foundation
Features
- Chimney with enclosed chase

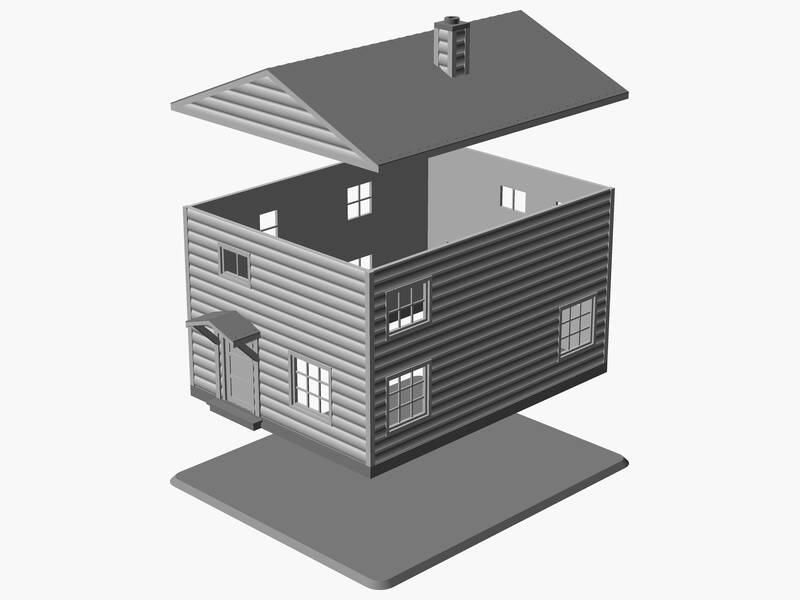

| Part | X (mm) | Y (mm) | Z (mm) |
|---|---|---|---|
| Assembly | 94.66 | 116.74 | 88.66 |
| Perimeter #1 | 77.13 | 111.48 | 59.60 |
| Wall #2 | 75.37 | 59.60 | 11.60 |
| Wall #3 | 99.91 | 59.60 | 1.75 |
| Wall #4 | 75.37 | 59.60 | 1.75 |
| Wall #5 | 99.91 | 59.60 | 1.75 |
| Roof #6 | 84.14 | 101.67 | 27.34 |
| Base #7 | 94.66 | 112.18 | 1.75 |
